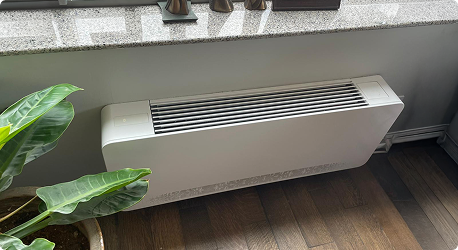

Model P(230V)
Nextac’s Model P (230V) is the quiet PTAC alternative that finally solves the problems of older units. With a slim, modern design, it cuts the bulk and the noise while keeping rooms comfortable and efficient. By reducing air leakage and heat loss, it lowers energy waste and maintains steady conditions. An inverter compressor and integrated ERV recover lost heat to ensure consistent comfort without distraction.

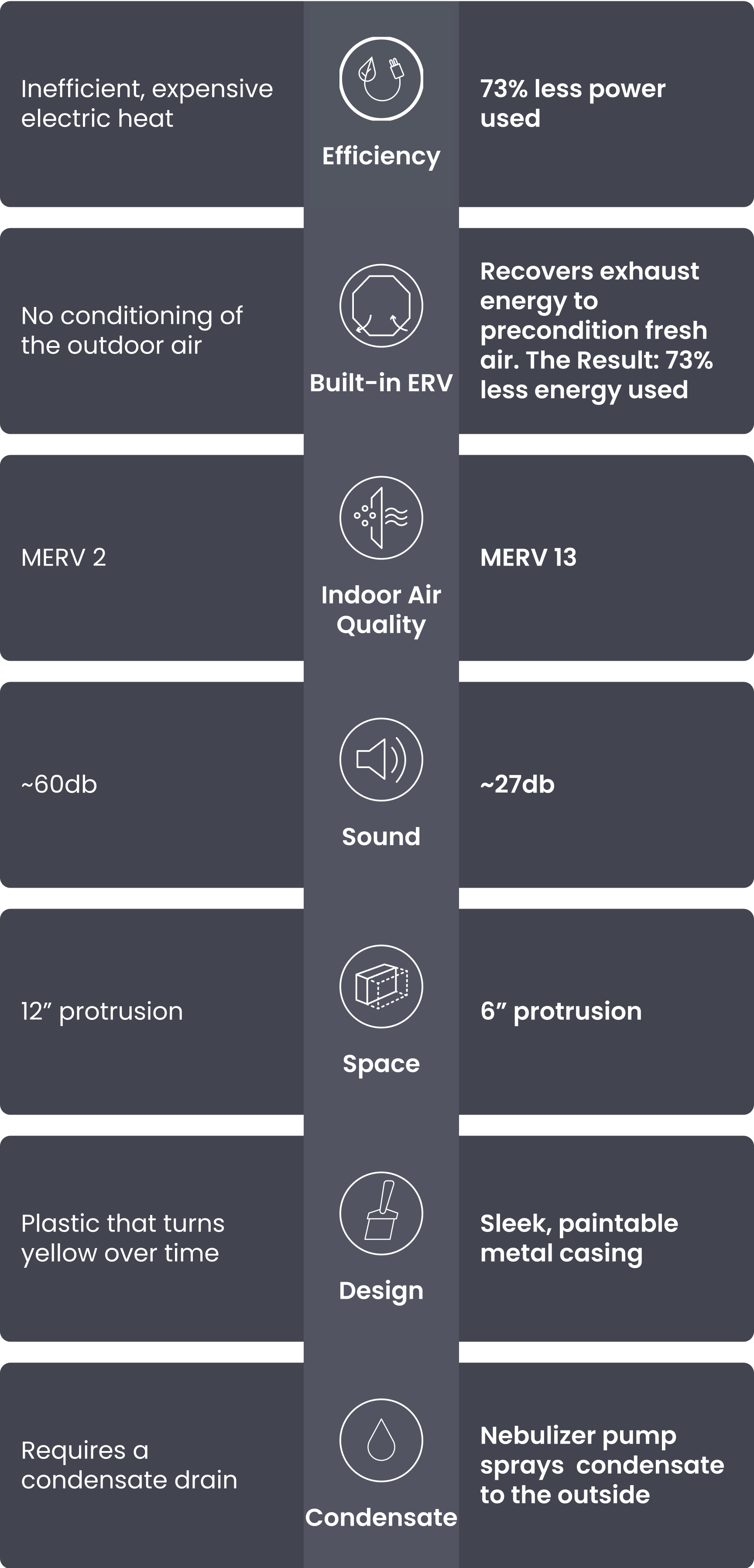

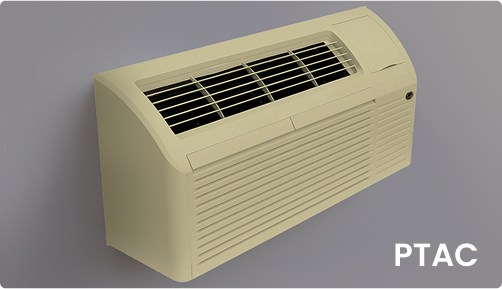

Unlike traditional PTACs, Model P blends performance with design flexibility, making it ideal for renovations and new builds. That combination makes it not only the quiet PTAC alternative, but also a smarter way to improve guest satisfaction, reduce operating costs, and future-proof your property against rising energy demands. Compare Nextac’s innovation with other PTAC technologies to see why it points to the future of PTAC performance—and why it’s the smarter choice today.
Due to overwhelming demand, Nextac Model P is sold out through the end of 2027. Our next production run is reserved for 2028. Reserve your unit now to secure your place in line.
Preorder Model P (230V)
Key Features
- Quiet operation (27 dBA)

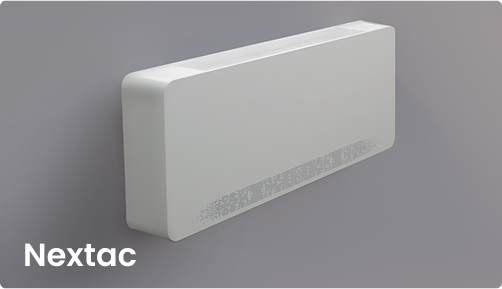

- Compact, sleek, slim design
- Durable all-metal paintable case
- Option for washable filters or MERV 13 rated filters for room air
- Accessible MERV 13 filters for outside-air
- Auto-restart feature
- Maintains uniform, consistent temperatures
- Backed by a 10-year limited warranty
- Offers cooling, heating, dehumidification, and auto modes
- Provides up to 50 CFM of fresh air
- Selectable fan speeds: low, medium, high, and auto
- Programmable outside-air intake
- Includes a connection for bathroom exhaust
- Efficient condensate disbursement system for cooling
- Features sound and thermal barriers
- Easy installation—compatible with any standard PTAC sleeve
- Wide range of capacity in a single unit
- 1,800W electric heating capability staged as 900W + 900W
- Features an optional condensate disbursement system for heating
- Optional sleeve includes a ThermaSleeve insulator for enhanced insulation
- AirSync technology for balanced airflow
- Compatible with both 230V and 277V power sources
- Offers hardwire or LCDI cord options
- Choice of refrigerants: R-32
- Features a twin-rotary BLDC inverter compressor
- Integrated ERV for fresh air circulation
- Utilizes Recovery+ technology, leveraging exhaust air to enhance condenser performance for heating and cooling
- Equipped with high-performance independent ECM fans for outside-air supply and room air exhaust
- Utilizes high-performance, extra-large C and V shaped heat exchangers
- Incorporates a unique high-efficiency, highperformance backward ECM centrifugal condenser fan
- Includes a high-performance ECM tangential fan for room supply-air
- Designed with a sound and thermal barrier for enhanced comfort
- Optional self-cleaning coils for minimal maintenance.
- Onboard touch controller dims after 15 seconds of inactivity
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- Third-Party thermostat interface
- BACnet/Modbus interface
- Wi-Fi App
- Central control system

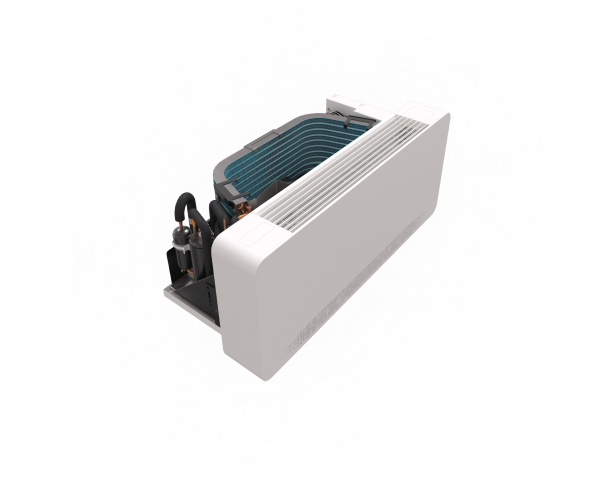

What's Inside
Technical Specifications
| Heat Pump Only · High Performance | 95°F35°C ¹ | 105°F41°C ² | 115°F46°C ³ |
|---|---|---|---|
| Capacity | |||
| Maximum (kBtu/h)(kW) | 17.05.0 | 15.54.5 | 14.04.1 |
| Recommended (kBtu/h)(kW)* | 12.53.7 | 10.43.1 | 10.02.9 |
| Rated (kBtu/h)(kW) | 11.53.4 | 11.53.4 | 11.53.4 |
| Minimum (kBtu/h)(kW) | 4.51.3 | 4.01.2 | 4.01.2 |
| Power input | |||
| Maximum (kW) | 2.00 | 1.9 | 2.0 |
| Recommended (kW)* | 1.06 | 1.06 | 1.16 |
| Rated (kW) | 0.96 | 1.21 | 1.35 |
| Minimum (kW) | 0.33 | 0.41 | 0.48 |
| Efficiency | |||
| Maximum | 8.5 | 8.1 | 6.6 |
| Recommended | 11.5 | 9.8 | 8.2 |
| AHRI Rated EER2 | 12 | 9.5 | 7.7 |
| AHRI (310/380) EER2 | 12 | - | - |
| Energy Star EER2 | - | - | - |
| SEER2† | 16 | - | - |
| Moisture removal (Pts/h)(L/h) | 2.41.1 | 2.91.4 | 3.41.6 |
| Heat Pump Only · Energy Star Compliant | 95°F35°C ¹ | 105°F41°C ² | 115°F46°C ³ |
|---|---|---|---|
| Capacity | |||
| Maximum (kBtu/h)(kW) | 15.04.4 | 13.03.8 | 11.53.4 |
| Recommended (kBtu/h)(kW)* | 11.53.4 | 9.52.8 | 8.52.5 |
| Energy Star (kBtu/h)(kW) | 8.52.5 | 8.52.5 | 8.52.5 |
| Minimum (kBtu/h)(kW) | 4.51.3 | 4.01.2 | 4.01.2 |
| Power input | |||
| Maximum (kW) | 1.72 | 1.57 | 1.35 |
| Recommended (kW)* | 0.96 | 0.94 | 0.97 |
| Energy Star (kW) | 0.64 | 0.81 | 0.97 |
| Minimum (kW) | 0.33 | 0.41 | 0.48 |
| Efficiency | |||
| Maximum | 8.8 | 8.2 | 7.7 |
| Recommended | 12 | 10.1 | 8.4 |
| AHRI Rated EER2 | - | - | - |
| AHRI (310/380) EER2 | - | - | - |
| Energy Star EER2 | 13 | 10.5 | 8.4 |
| SEER2 | - | - | - |
| Moisture removal (Pts/h)(L/h) | 1.90.9 | 2.41.1 | 2.91.4 |
- ¹ 95°F — ID: 80°F, W.B. 67°F; OD: 95°F, W.B. 75°F¹ 35°C — ID: 26.7°C, W.B. 19.4°C; OD: 35°C, W.B. 23.9°C
- ² 105°F — ID: 80°F, W.B. 67°F; OD: 105°F, W.B. 75°F² 41°C — ID: 26.7°C, W.B. 19.4°C; OD: 40.6°C, W.B. 23.9°C
- ³ 115°F — ID: 80°F, W.B. 67°F; OD: 115°F, W.B. 75°F³ 46°C — ID: 26.7°C, W.B. 19.4°C; OD: 46.1°C, W.B. 23.9°C
- * This is the recommended capacity for sizing the unit to the space
- † SEER2 does not apply to PTHP-type units and is shown solely to enable comparison with similar heat pump systems. Values are for reference and comparison purposes only.
| Heat Pump Only** · High-Performance | 47°F8°C ¹ | 17°F-8°C ² | 5°F-15°C ³ | 0°F-17°C ⁴ | -5°F-20°C ⁵ |
|---|---|---|---|---|---|
| Capacity | |||||
| Maximum (kBtu/h)(kW) | 15.54.5 | 13.03.8 | 10.02.9 | 9.02.6 | 8.52.5 |
| Recommended (kBtu/h)(kW)* | 12.53.7 | 11.53.4 | 9.02.6 | 8.52.5 | 8.52.5 |
| Rated (kBtu/h)(kW) | 11.53.4 | 11.53.4 | 6.51.9 | 6.51.9 | 6.51.91 |
| Minimum (kBtu/h)(kW) | 4.01.2 | 3.00.9 | 2.70.8 | 2.40.7 | 2.00.6 |
| Power input | |||||
| Maximum (kW) | 1.42 | 1.65 | 1.32 | 1.29 | 1.31 |
| Recommended (kW)* | 1.04 | 1.28 | 1.24 | 1.23 | 1.31 |
| Rated (kW) | 0.90 | 1.28 | 1.0 | 1.04 | 1.03 |
| Minimum (kW) | 0.30 | 0.38 | 0.37 | 0.35 | 0.35 |
| Efficiency | |||||
| Maximum | 3.2 | 2.3 | 2.1 | 2 | 1.9 |
| Recommended | 3.6 | 2.5 | 2.12 | 2 | 1.9 |
| Rated | 3.8 | 2.5 | 2.2 | 2.06 | 1.95 |
| (AHRI 310/380) COP2 | 3.8 | - | - | - | - |
| Energy Star | - | - | - | - | - |
| Minimum | 4.14 | 2.3 | 2.3 | 2 | 1.8 |
| HSPF2*** | 8 | - | - | - | - |
| Heat Pump Only** · Energy Star Compliant | 47°F8°C ¹ | 17°F-8°C ² | 5°F-15°C ³ | 0°F-17°C ⁴ | -5°F-20°C ⁵ |
|---|---|---|---|---|---|
| Capacity | |||||
| Maximum (kBtu/h)(kW) | 12.53.7 | 11.03.2 | 9.02.64 | 9.02.6 | 8.52.5 |
| Recommended (kBtu/h)(kW)* | 10.02.9 | 8.52.5 | 8.02.34 | 7.52.2 | 8.52.5 |
| Energy Star (kBtu/h)(kW) | 8.52.5 | 8.52.5 | 6.51.91 | 6.51.9 | 6.51.9 |
| Minimum (kBtu/h)(kW) | 4.01.2 | 3.00.9 | 2.70.79 | 2.40.7 | 2.00.6 |
| Power input | |||||
| Maximum (kW) | 1.04 | 1.21 | 1.24 | 1.29 | 1.31 |
| Recommended (kW)* | 0.70 | 0.87 | 1.19 | 1.12 | 1.31 |
| Energy Star (kW) | 0.61 | 0.87 | 1.0 | 1.04 | 1.03 |
| Minimum (kW) | 0.30 | 0.38 | 0.37 | 0.35 | 0.35 |
| Efficiency | |||||
| Maximum | 3.6 | 2.6 | 2.12 | 2 | 1.9 |
| Recommended | 3.9 | 2.7 | 2.15 | 2.04 | 1.9 |
| Energy Star | 4 | 2.7 | 2.2 | 2.06 | 1.95 |
| Minimum | 4.14 | 2.3 | 2.3 | 2 | 1.8 |
| HSPF2*** | 9.2 | - | - | - | - |
- ¹ 47°F — ID: 70°F, W.B. 60°F; OD: 47°F, W.B. 43°F¹ 8°C — ID: 21.1°C, W.B. 15.6°C; OD: 8.3°C, W.B. 6.1°C
- ² 17°F — ID: 70°F, W.B. 60°F; OD: 17°F, W.B. 13°F² -8°C — ID: 21.1°C, W.B. 15.6°C; OD: -8.3°C, W.B. -10.6°C
- ³ 5°F — ID: 70°F, W.B. 60°F; OD: 5°F, W.B. 3°F³ -15°C — ID: 21.1°C, W.B. 15.6°C; OD: -15°C, W.B. -16.1°C
- ⁴ 0°F — ID: 70°F, W.B. 60°F; OD: 0°F⁴ -17°C — ID: 21.1°C, W.B. 15.6°C; OD: -17.8°C
- ⁵ -5°F — ID: 70°F, W.B. 60°F; OD: -5°F⁵ -20°C — ID: 21.1°C, W.B. 15.6°C; OD: -20.6°C
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
- *** SEER2 does not apply to PTHP-type units and is shown solely to enable comparison with similar heat pump systems. Values are for reference and comparison purposes only.
