Model P (230V)

Nextac’s Model P (230V) is the quiet PTAC alternative that finally solves the problems of older units. With a slim, modern design, it cuts the bulk and the noise while keeping rooms comfortable and efficient. By reducing air leakage and heat loss, it lowers energy waste and maintains steady conditions. An inverter compressor and integrated ERV recover lost heat to ensure consistent comfort without distraction.

Unlike traditional PTACs, Model P blends performance with design flexibility, making it ideal for renovations and new builds. That combination makes it not only the quiet PTAC alternative, but also a smarter way to improve guest satisfaction, reduce operating costs, and future-proof your property against rising energy demands. Compare Nextac’s innovation with other PTAC technologies to see why it points to the future of PTAC performance—and why it’s the smarter choice today.

Order Model P (230V)

Comfort

Cooling Efficiency

Heating Efficiency

Infiltration

Quiet

Aesthetics

Fresh Air

Nextac

PTAC

PTHP

User Experience

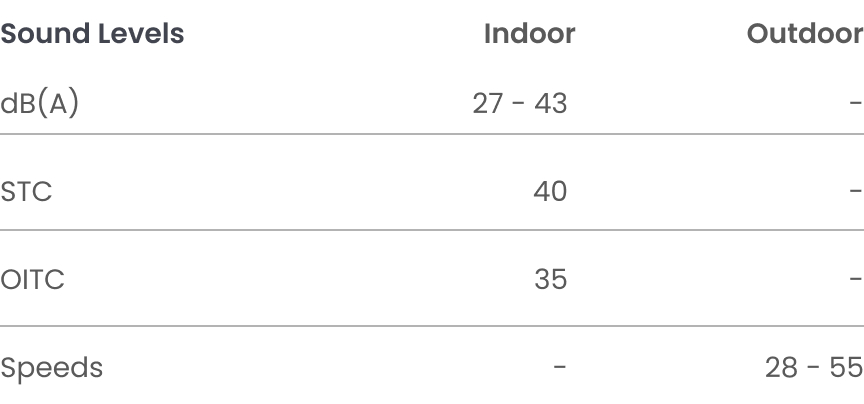

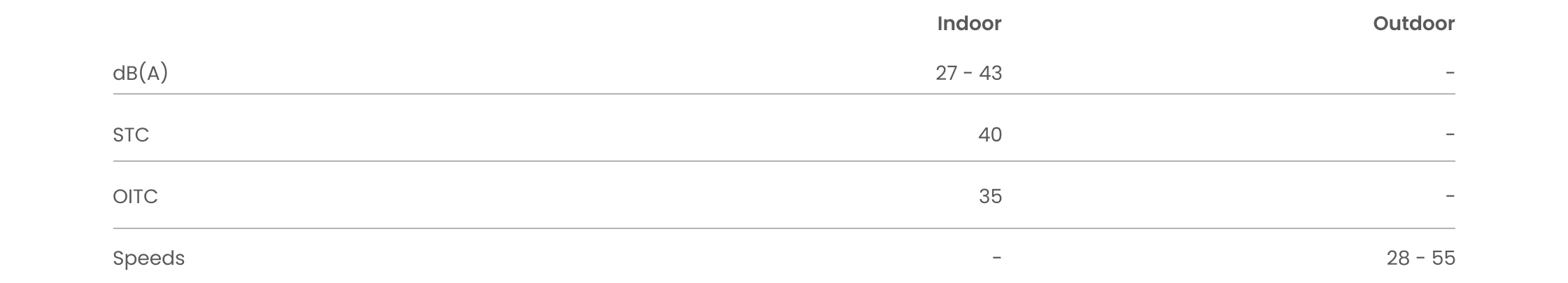

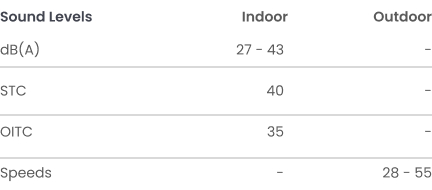

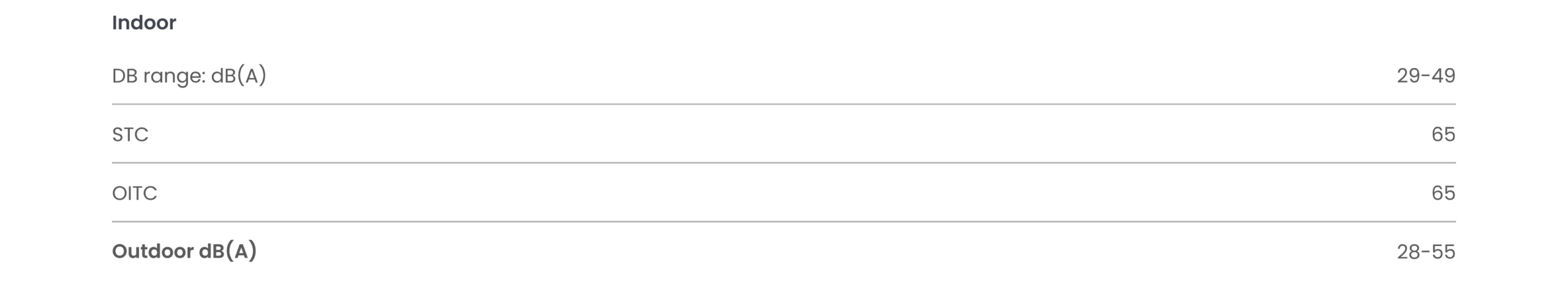

  • Quiet operation (27 dBA)
  • Compact, sleek, slim design
  • Durable all-metal paintable case
  • Option for washable filters or MERV 13 rated filters for room air
  • Accessible MERV 13 filters for outside-air
  • Auto-restart feature
  • Maintains uniform, consistent temperatures

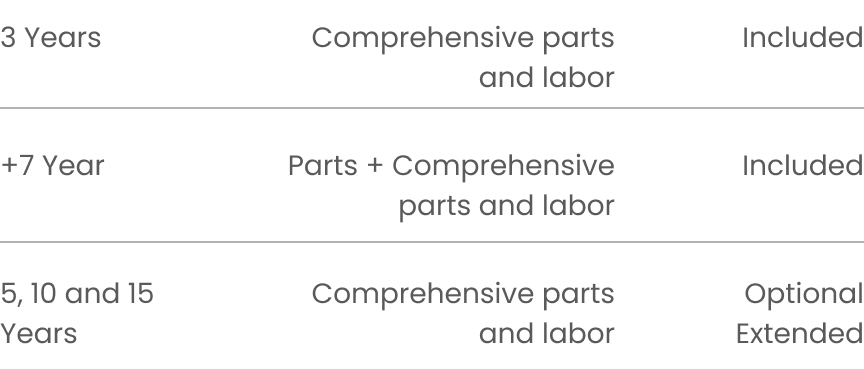

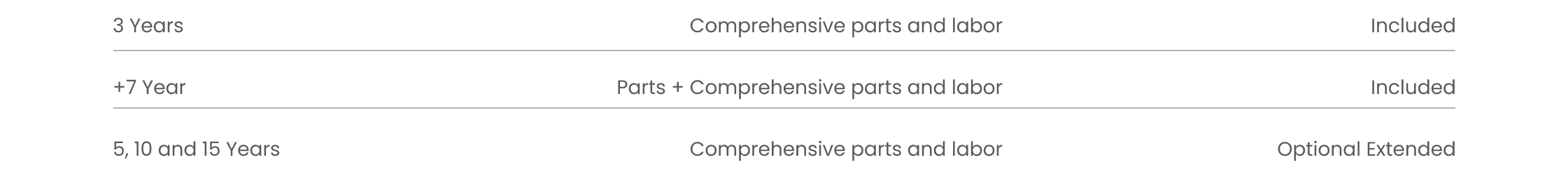

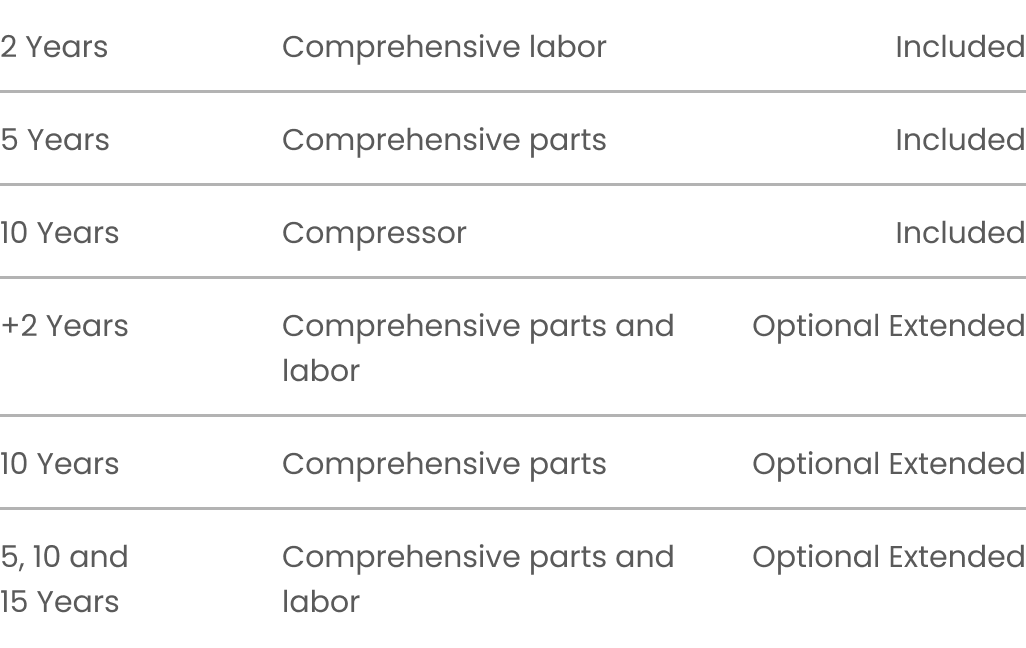

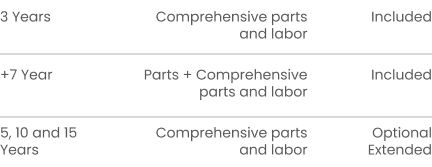

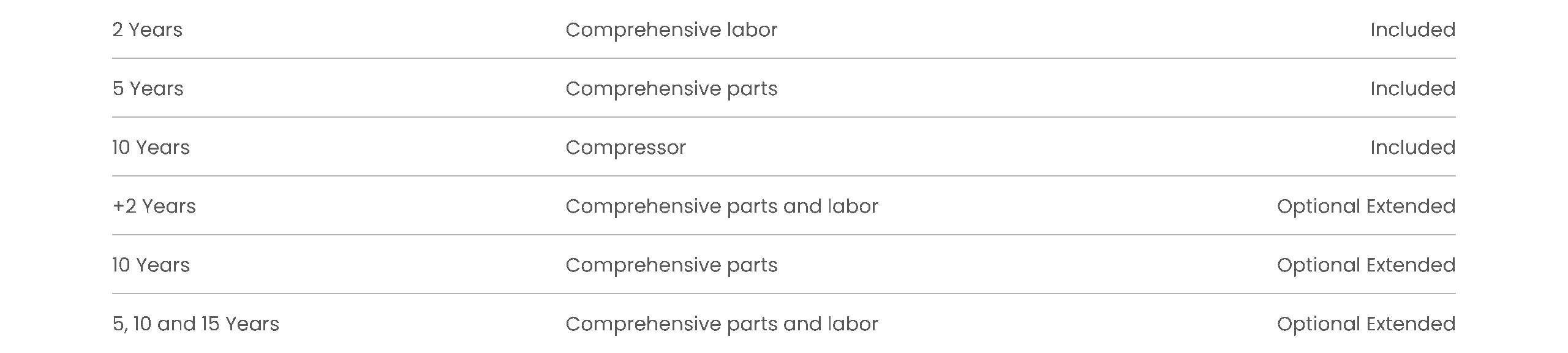

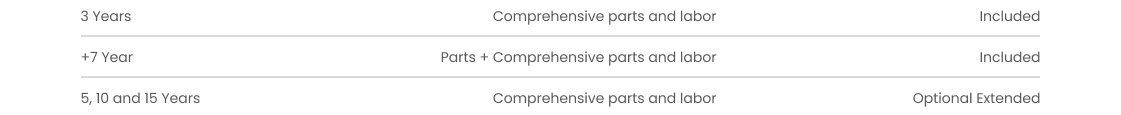

  • Backed by a 10-year limited warranty

Operations

  • Offers cooling, heating, dehumidification, and auto modes
  • Provides up to 50 CFM of fresh air
  • Selectable fan speeds: low, medium, high, and auto
  • Programmable outside-air intake
  • Includes a connection for bathroom exhaust
  • Efficient condensate disbursement system for cooling
  • Features sound and thermal barriers
  • Easy installation—compatible with any standard PTAC sleeve
  • Wide range of capacity in a single unit

Options

  • 1,800W electric heating capability staged as 900W + 900W
  • Features an optional condensate disbursement system for heating
  • Optional sleeve includes a ThermaSleeve insulator for enhanced insulation
  • AirSync technology for balanced airflow
  • Compatible with both 230V and 277V power sources

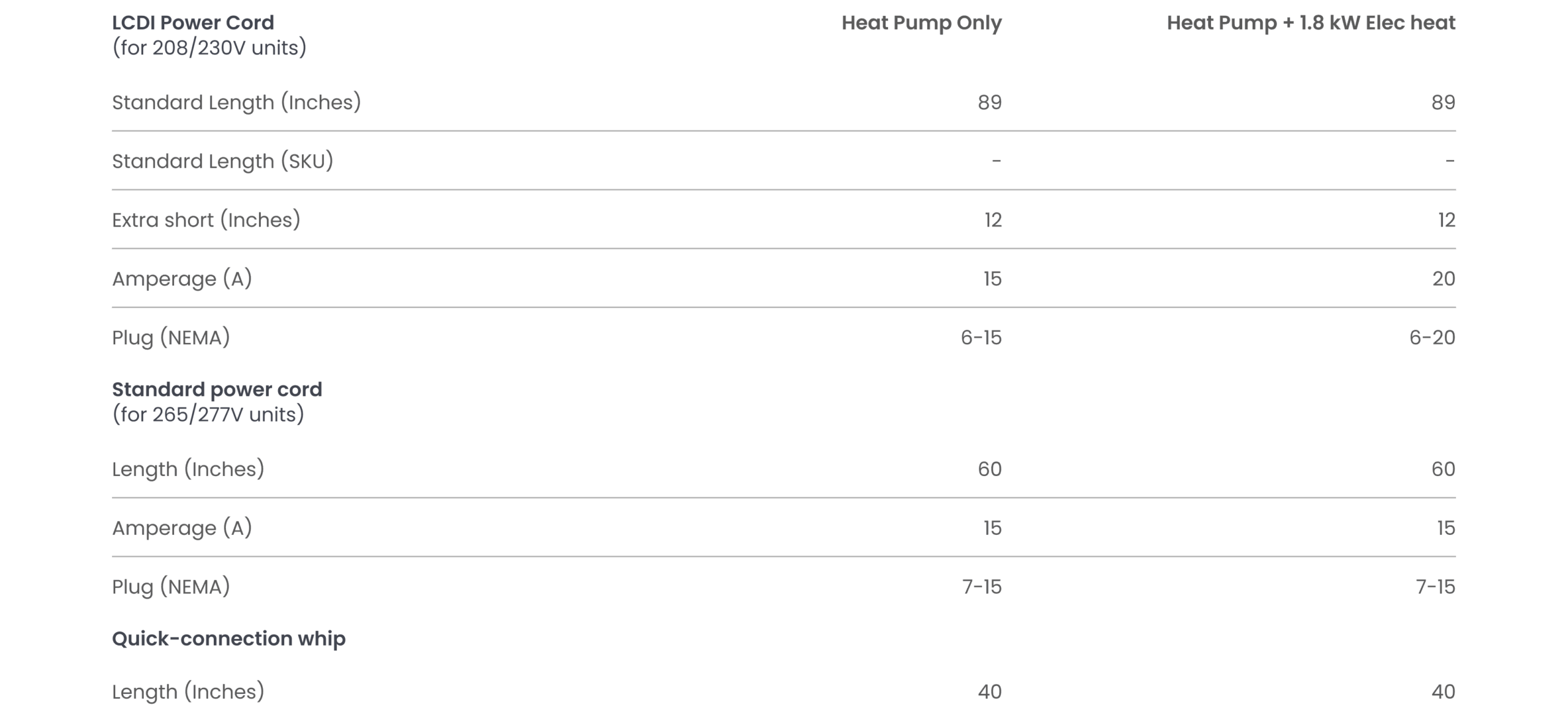

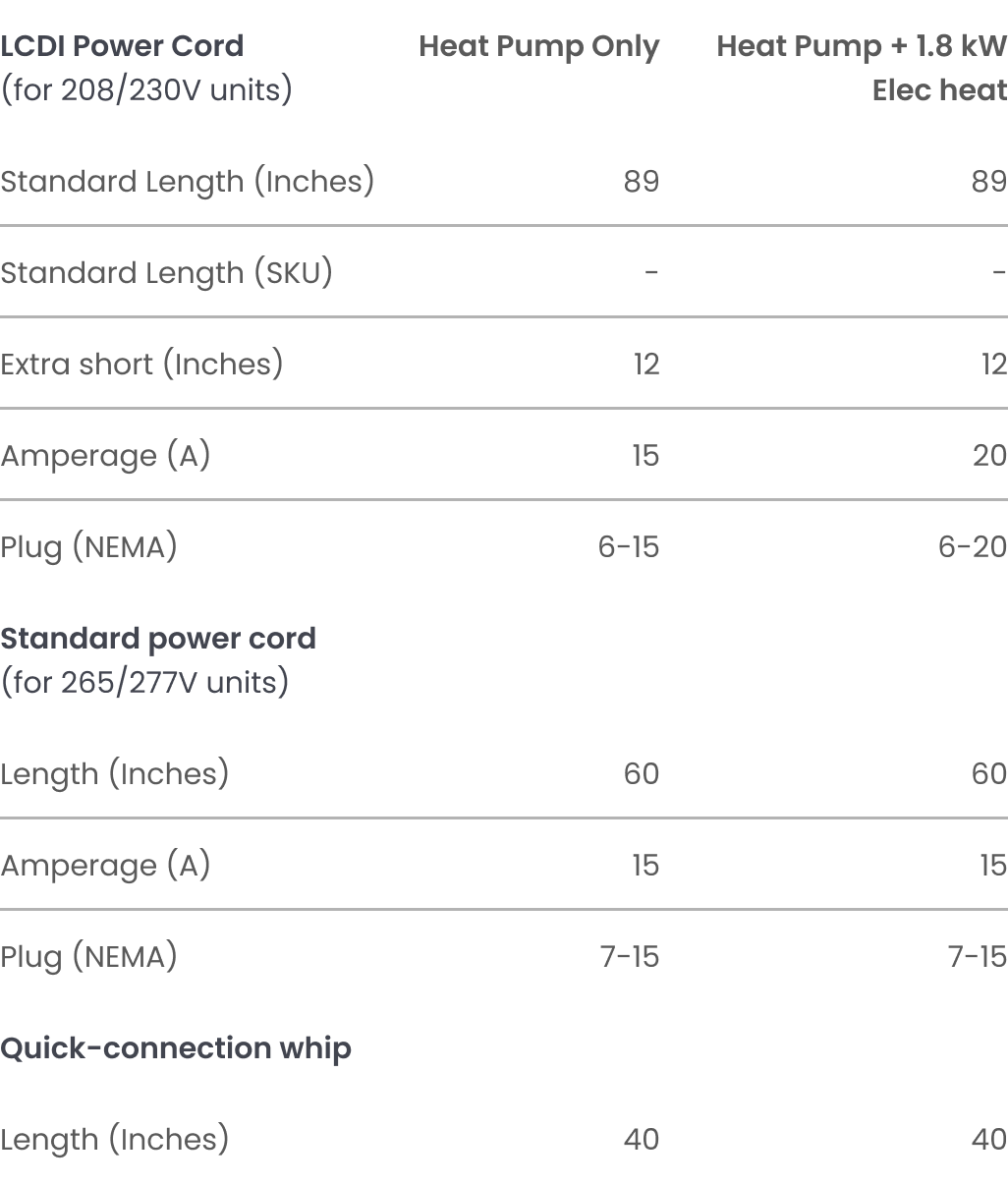

  • Offers hardwire or LCDI cord options
  • Choice of refrigerants: R-32

Efficiency

  • Features a twin-rotary BLDC inverter compressor
  • Integrated ERV for fresh air circulation
  • Utilizes Recovery+ technology, leveraging exhaust air to enhance condenser performance for heating and cooling
  • Equipped with high-performance independent ECM fans for outside-air supply and room air exhaust
  • Utilizes high-performance, extra-large C and V shaped heat exchangers
  • Incorporates a unique high-efficiency, highperformance backward ECM centrifugal condenser fan
  • Includes a high-performance ECM tangential fan for room supply-air
  • Designed with a sound and thermal barrier for enhanced comfort
  • Optional self-cleaning coils for minimal maintenance.

Controllers

  • Onboard touch controller dims after 15 seconds of inactivity

Optional Controllers:

  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third-Party thermostat interface
  • BACnet/Modbus interface
  • Wi-Fi App
  • Central control system

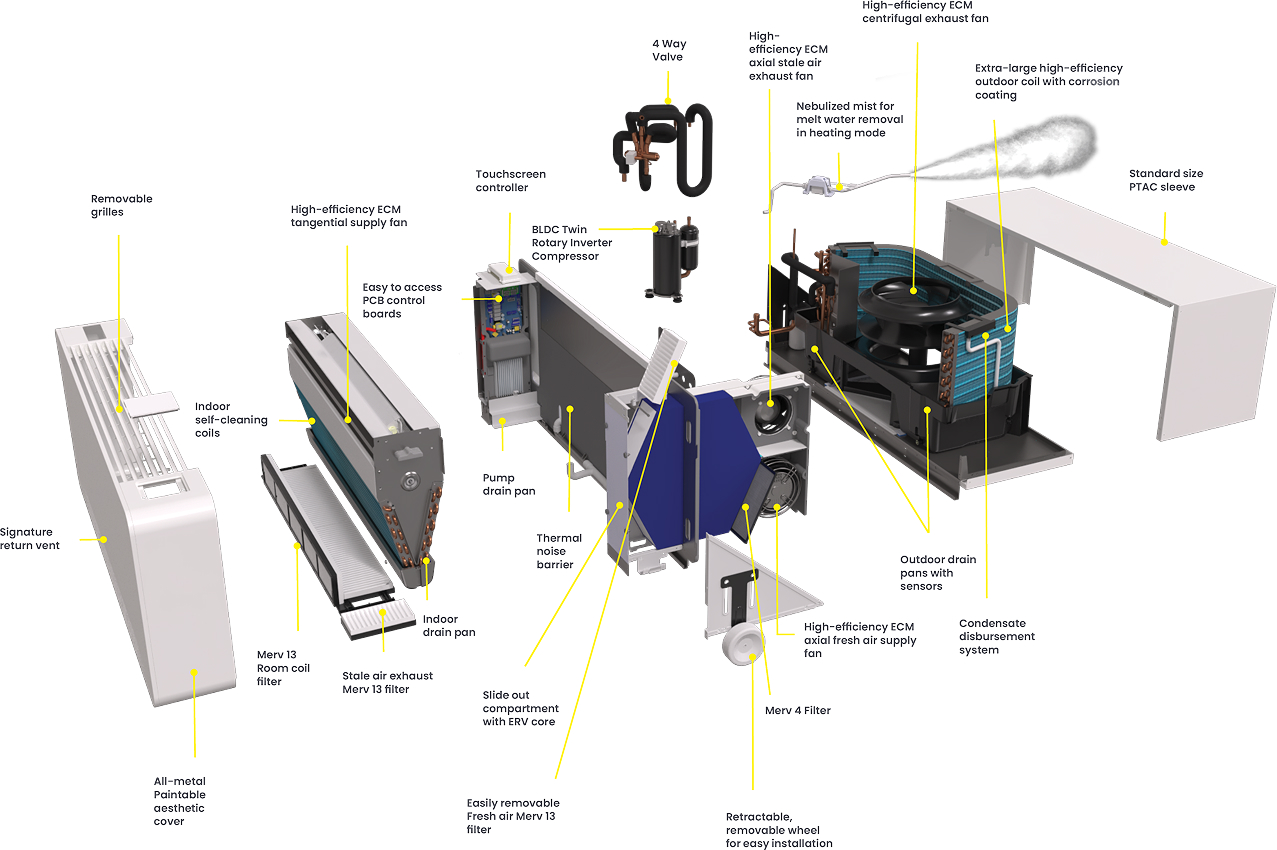

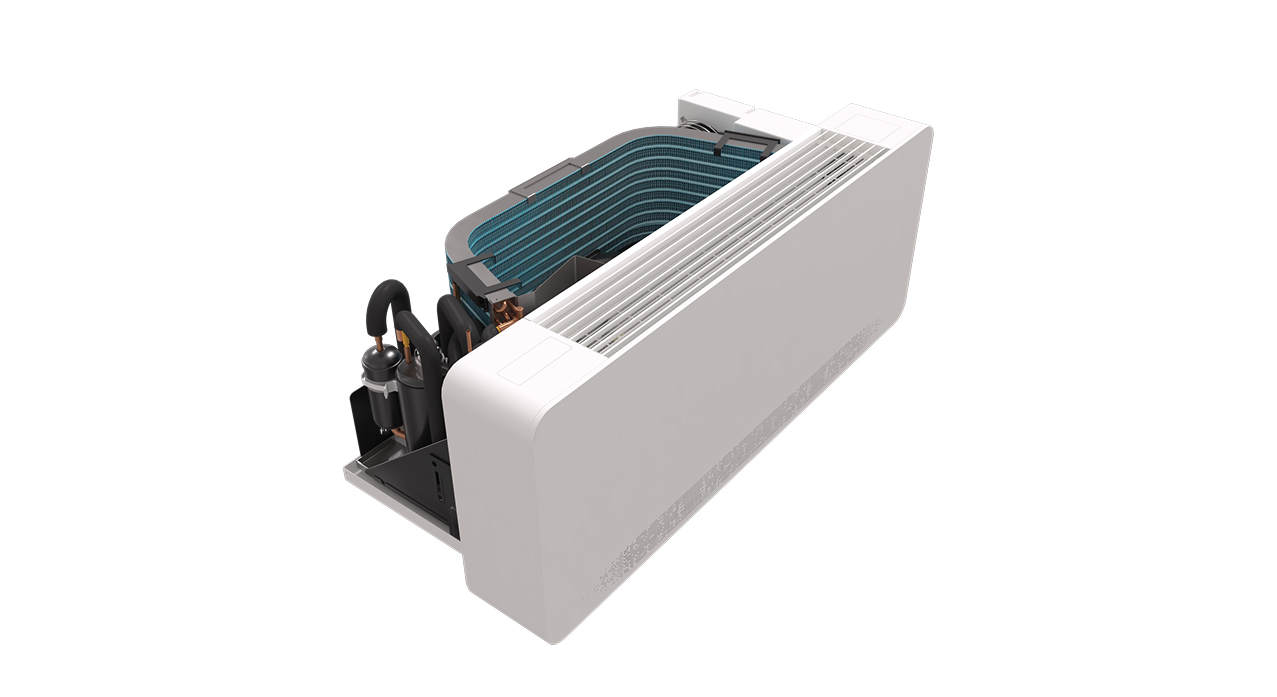

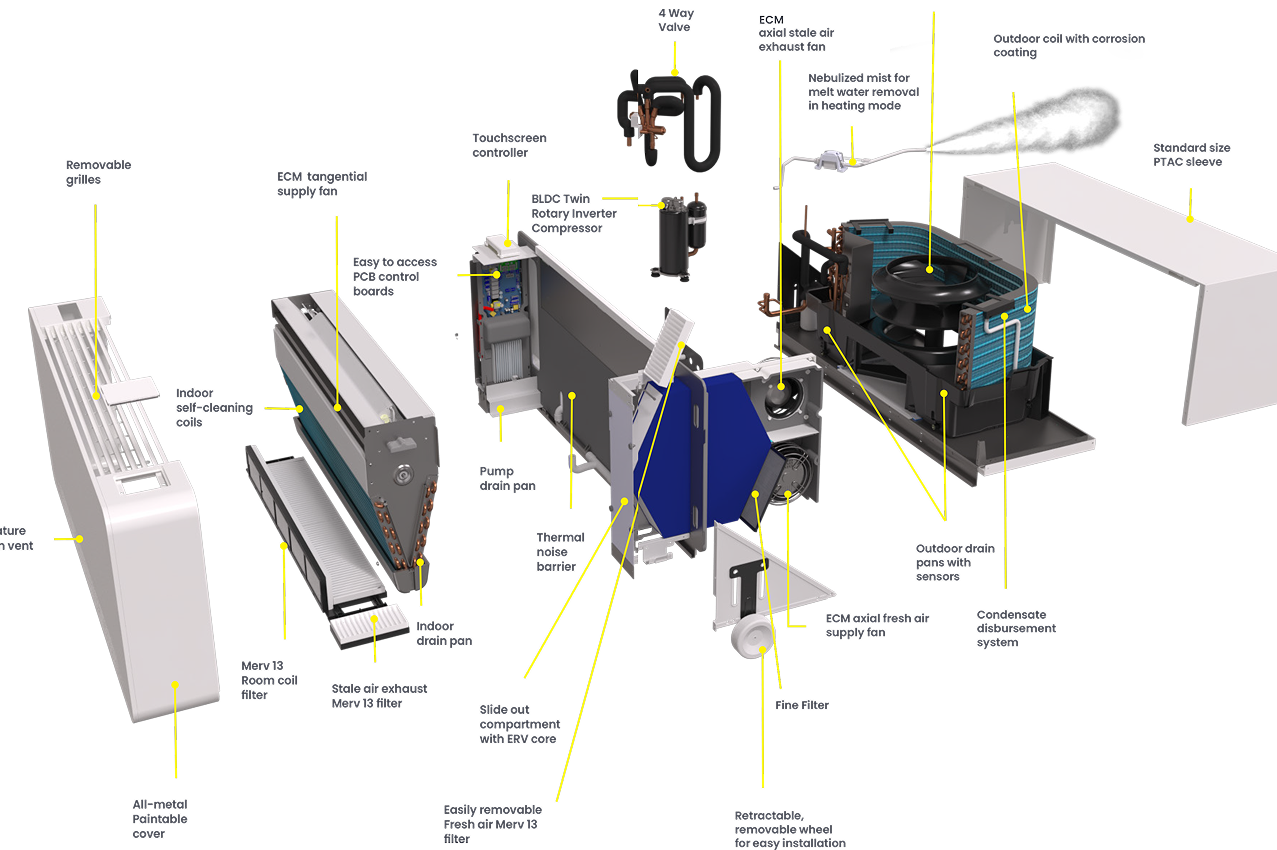

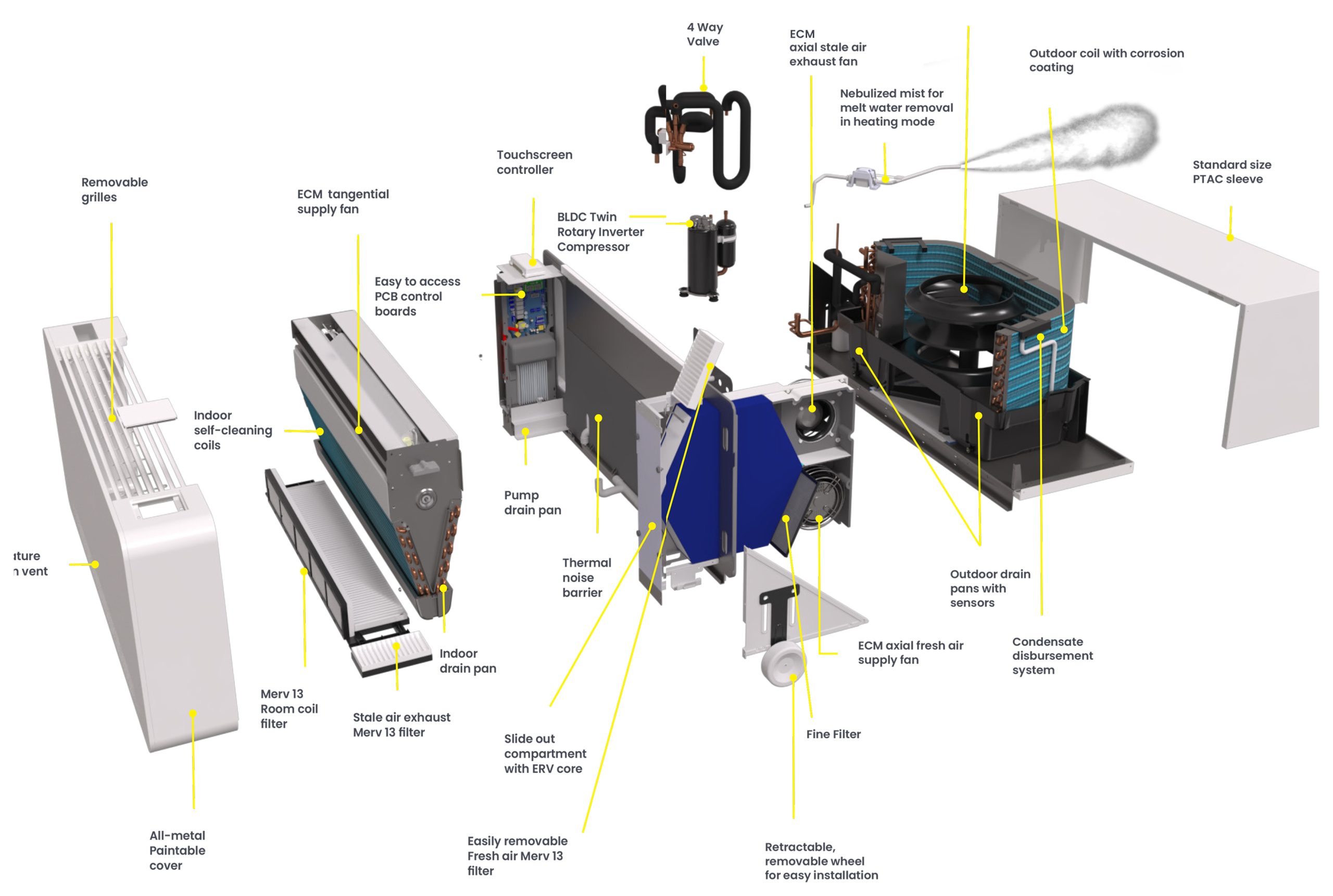

What's Inside

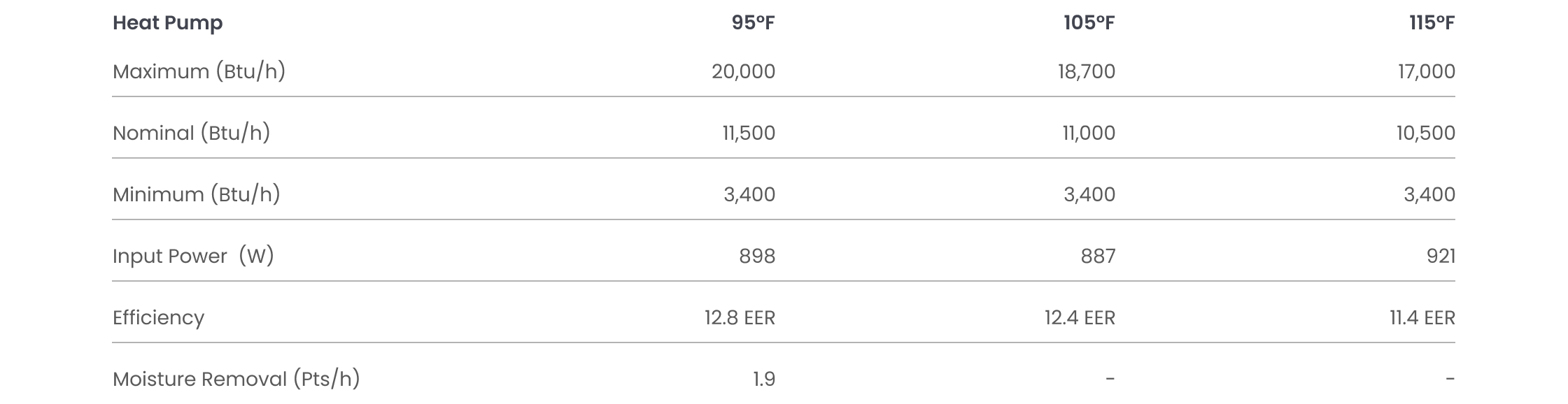

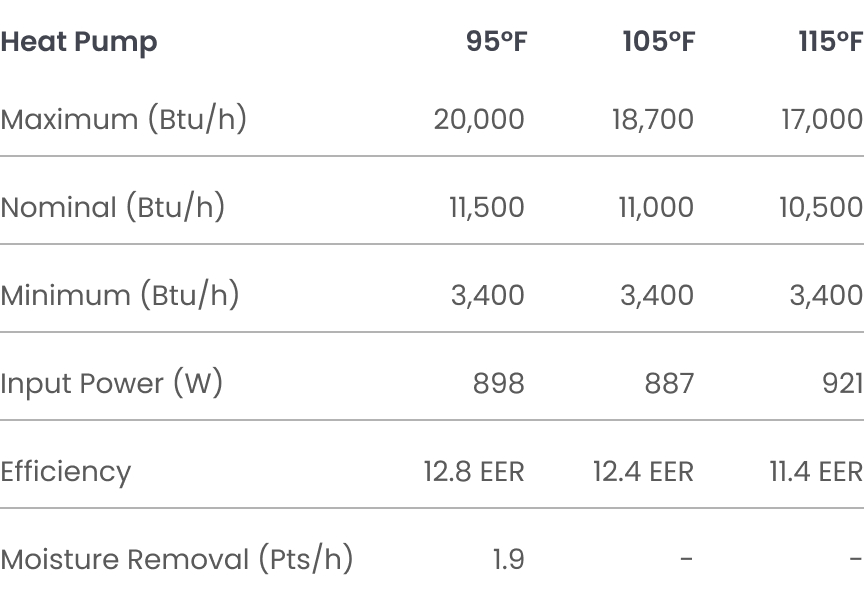

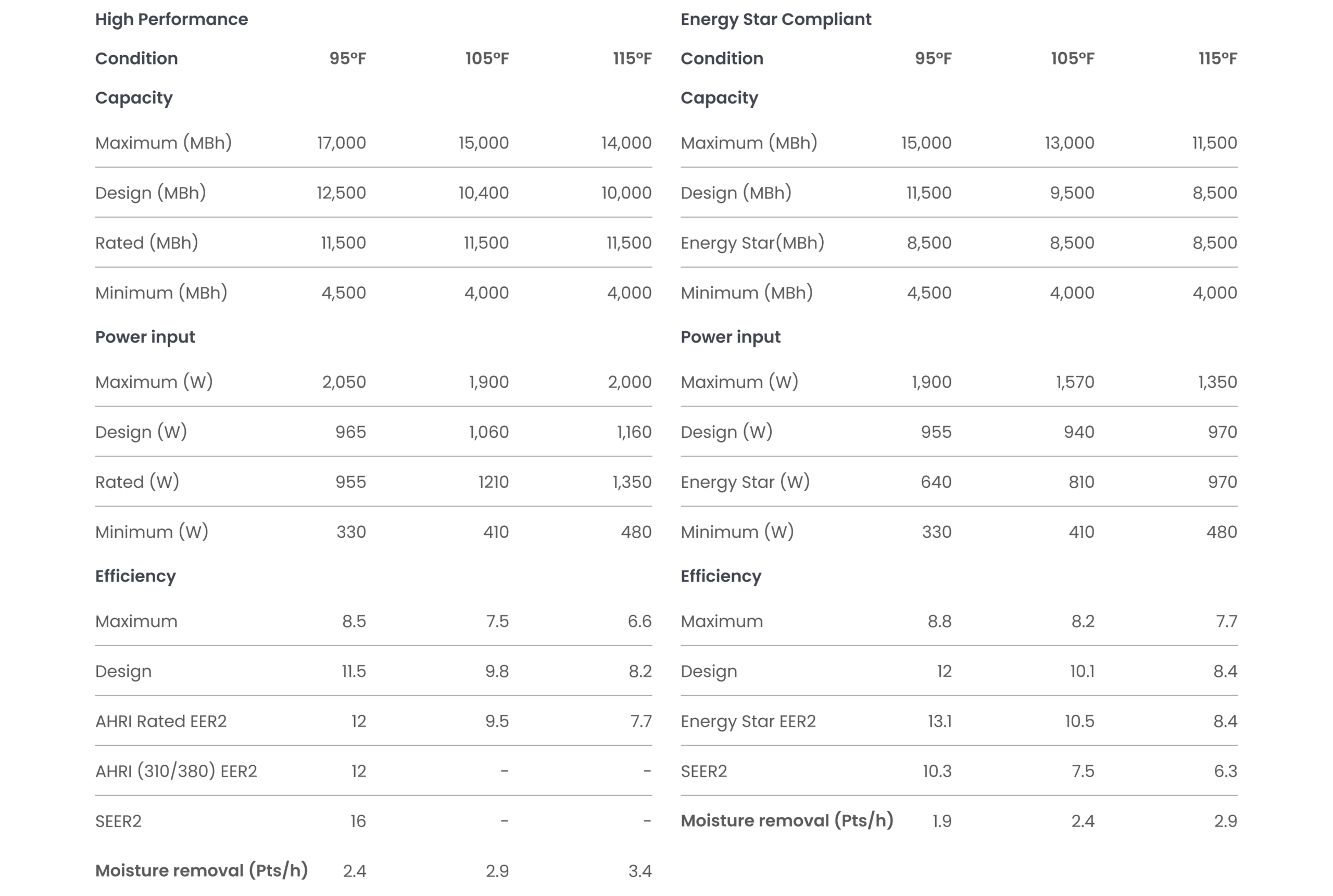

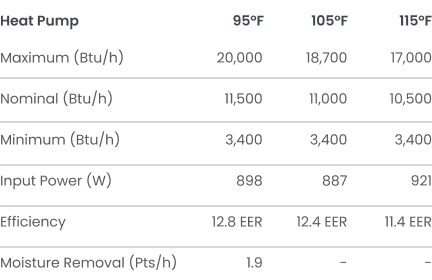

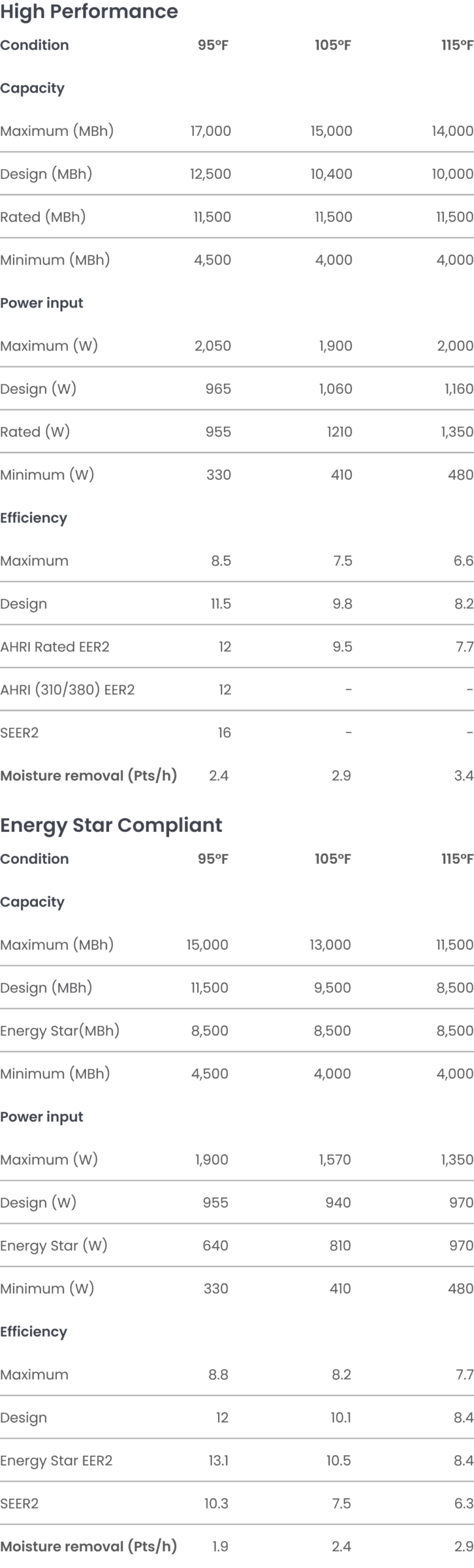

Technical Specifications

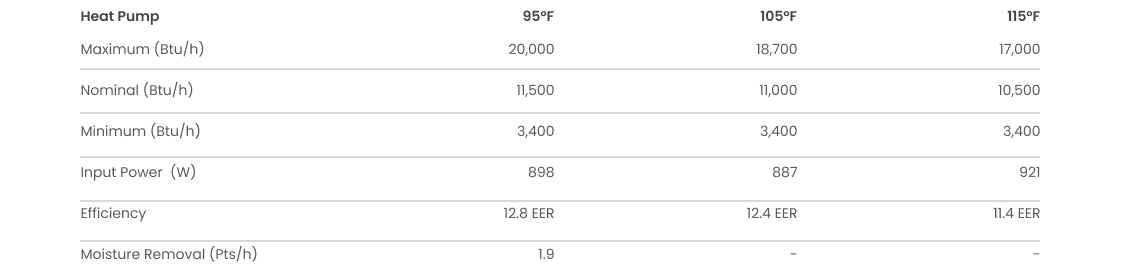

Heat Pump Only

High Performance

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Rated (kBtu/h)
  • Minimum (kBtu/h)

Power input

  • Maximum (kW)
  • Recommended (kW)*
  • Rated (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • AHRI Rated EER2
  • AHRI (310/380) EER2
  • Energy Star EER2
  • SEER2***

Moisture removal (Pts/h)



95°F 1



  • 17
  • 12.5
  • 11.5
  • 4.5



  • 2.00
  • 0.97
  • 0.96
  • 0.33



  • 8.5
  • 11.5
  • 12
  • 12
  • -
  • 16
  • 2.4



105°F 2



  • 15
  • 10.4
  • 11.5
  • 4.0



  • 1.9
  • 1.06
  • 1.21
  • 0.41



  • 7.5
  • 9.8
  • 9.5
  • -
  • -
  • -
  • 2.9



115°F 3



  • 14
  • 10
  • 11.5
  • 4.0



  • 2.0
  • 1.16
  • 1.35
  • 0.48



  • 6.6
  • 8.2
  • 7.7
  • -
  • -
  • -
  • 3.4

Heat Pump Only

Energy Star Compliant

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Energy Star (kBtu/h)
  • Minimum (kBtu/h)

Power input

  • Maximum (kW)
  • Recommended (kW)*
  • Energy Star (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • AHRI Rated EER2
  • AHRI (310/380) EER2
  • Energy Star EER2
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 15
  • 11.5
  • 8.5
  • 4.5



  • 1.72
  • 0.96
  • 0.64
  • 0.33



  • 8.8
  • 12
  • -
  • -
  • 13
  • -
  • 1.9



105°F 2



  • 13
  • 9.5
  • 8.5
  • 4.0



  • 1.57
  • 0.94
  • 0.81
  • 0.41



  • 8.2
  • 10.1
  • -
  • -
  • 10.5
  • -
  • 2.4



115°F 3



  • 11.5
  • 8.5
  • 8.5
  • 4.0



  • 1.35
  • 0.97
  • 0.97
  • 0.48



  • 7.7
  • 8.4
  • -
  • -
  • 8.4
  • -
  • 2.9
  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space
  • ***SEER2 does not apply to PTHP-type units and is shown solely to enable comparison with similar heat pump systems. Values are for reference and comparison purposes only.

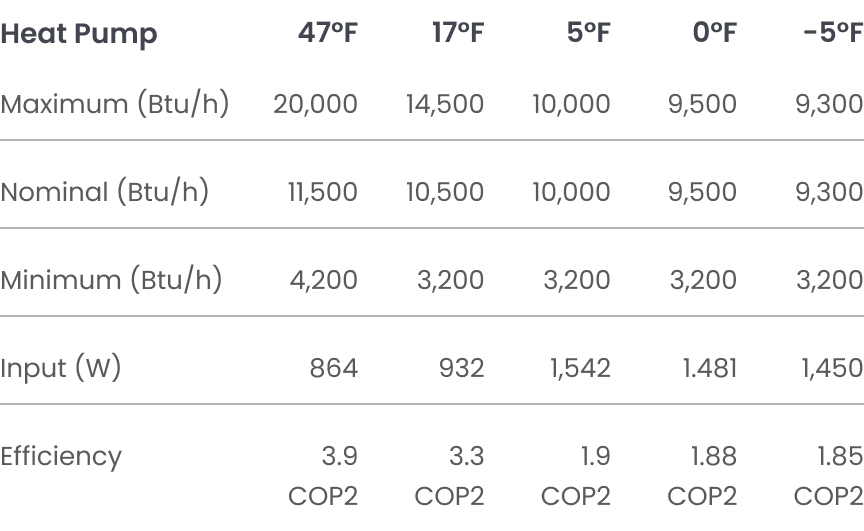

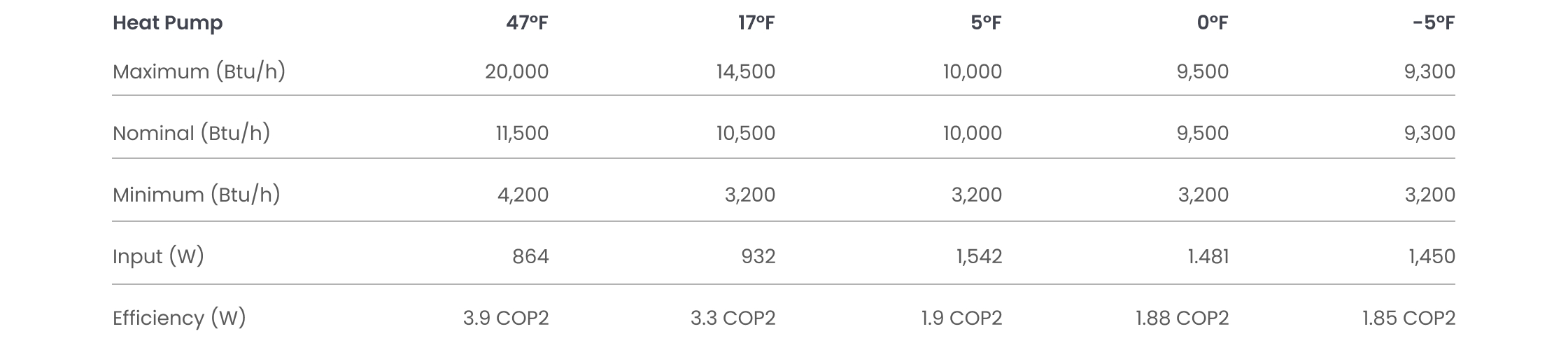

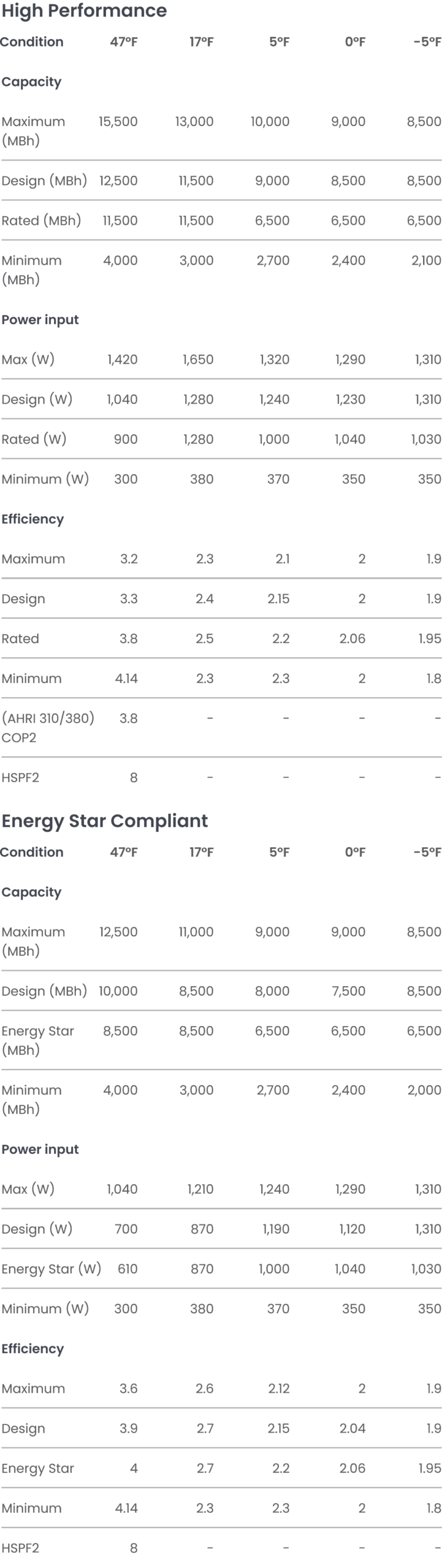

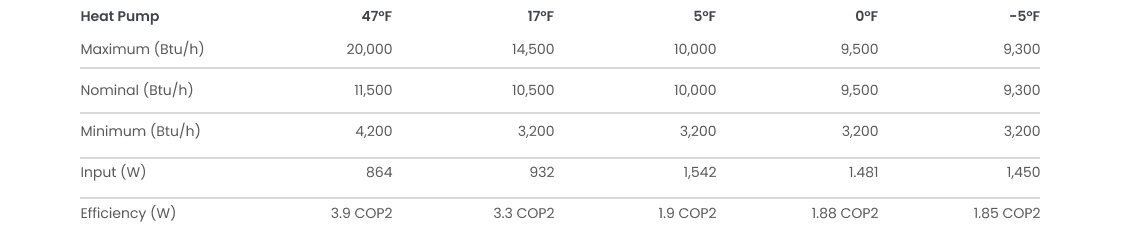

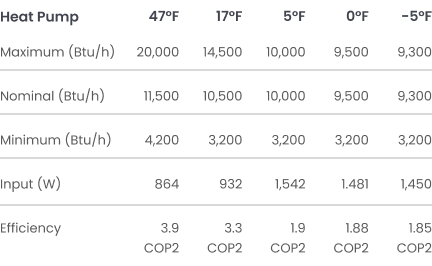

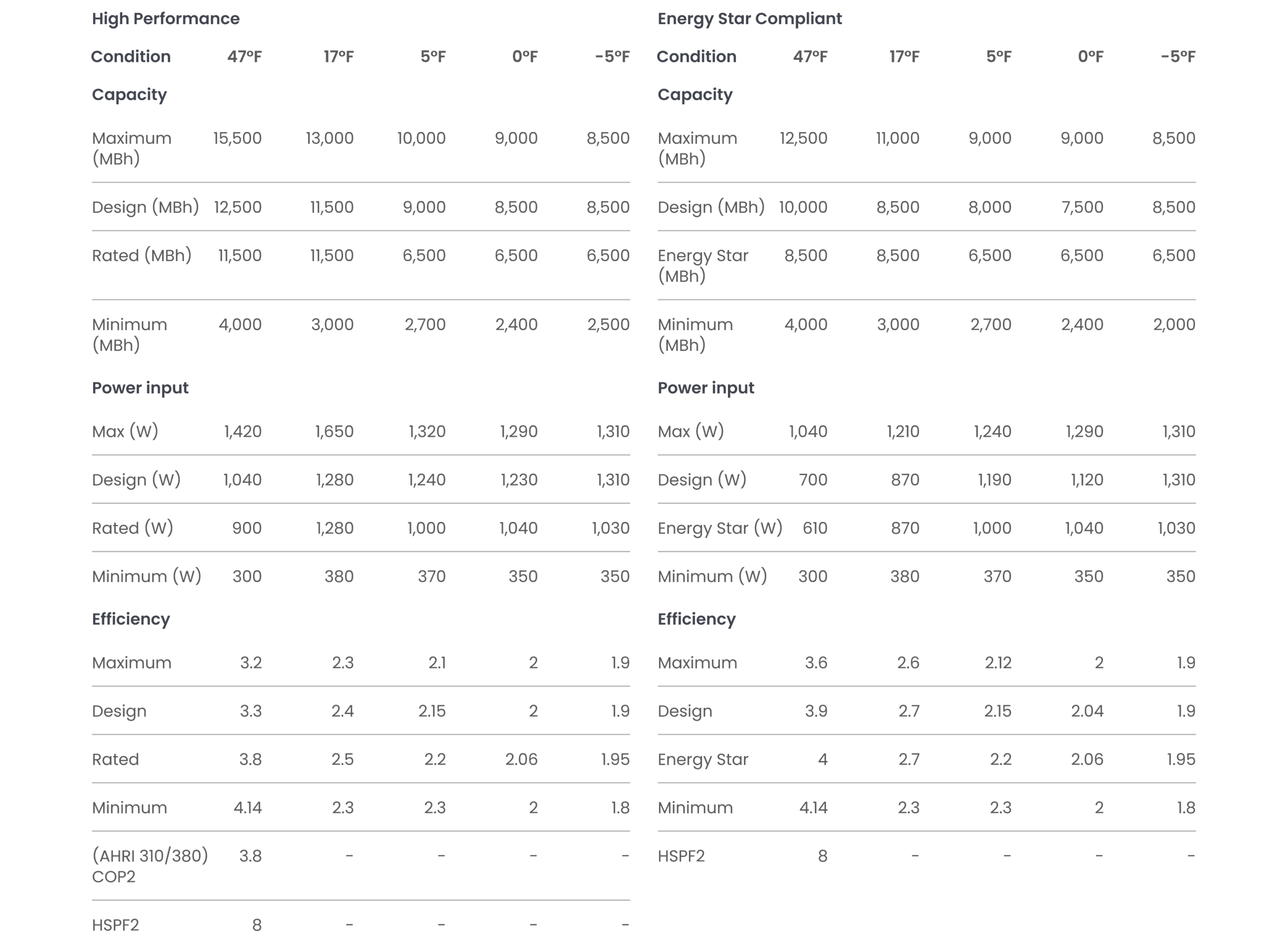

Heat Pump Only**

High-Performance

Capacity

  • Maximum
(kBtu/h)
  • Recommended (kBtu/h)*
  • Rated (kBtu/h)
  • Minimum (kBtu/h)

Power input

  • Maximum (kW)
  • Recommended (kW)*
  • Rated (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Rated
  • (AHRI 310/380)
COP2
  • Energy Star
  • Minimum
  • HSPF2***



47°F 1



  • 15.5
  • 12.5
  • 11.5
  • 4



  • 1.42
  • 1.04
  • 0.90
  • 0.30



  • 3.2
  • 3.6
  • 3.8
  • 3.8
  • -
  • 4.14
  • 8



17°F 2



  • 13
  • 11.5
  • 11.5
  • 3



  • 1.65
  • 1.28
  • 1.28
  • 0.38



  • 2.3
  • 2.5
  • 2.5
  • -
  • -
  • 2.3
  • -



5°F 3



  • 10
  • 9
  • 6.5
  • 2.7



  • 1.32
  • 1.24
  • 1.0
  • 0.37



  • 2.1
  • 2.12
  • 2.2
  • -
  • -
  • 2.3
  • -



0°F 4



  • 9
  • 8.5
  • 6.5
  • 2.4



  • 1.29
  • 1.23
  • 1.04
  • 0.35



  • 2
  • 2
  • 2.06
  • -
  • -
  • 2
  • -



-5°F 5



  • 8.5
  • 8.5
  • 6.5
  • 2



  • 1.31
  • 1.31
  • 1.03
  • 0.35



  • 1.9
  • 1.9
  • 1.95
  • -
  • -
  • 1.8
  • -

Heat Pump Only**

Energy Star Compliant

Capacity

  • Maximum
(kBtu/h)
  • Recommended (kBtu/h)*
  • Energy Star (kBtu/h)
  • Minimum (kBtu/h)

Power input

  • Maximum (kW)
  • Recommended (kW)*
  • Energy Star (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Energy Star
  • Minimum
  • HSPF2***



47°F 1



  • 12.5
  • 10
  • 8.5
  • 4



  • 1.04
  • 0.70
  • 0.61
  • 0.30



  • 3.6
  • 3.9
  • 4
  • 4.14
  • 8



17°F 2



  • 11
  • 8.5
  • 8.5
  • 3



  • 1.21
  • 0.87
  • 0.87
  • 0.38



  • 2.6
  • 2.7
  • 2.7
  • 2.3
  • -



5°F 3



  • 9
  • 8
  • 6.5
  • 2.7



  • 1.24
  • 1.19
  • 1.0
  • 0.37



  • 2.12
  • 2.15
  • 2.2
  • 2.3
  • -



0°F 4



  • 9
  • 7.5
  • 6.5
  • 2.4



  • 1.29
  • 1.12
  • 1.04
  • 0.35



  • 2
  • 2.04
  • 2.06
  • 2
  • -



-5°F 5



  • 8.5
  • 8.5
  • 6.5
  • 2



  • 1.31
  • 1.31
  • 1.03
  • 0.35



  • 1.9
  • 1.9
  • 1.95
  • 1.8
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.
  • *** SEER2 does not apply to PTHP-type units and is shown solely to enable comparison with similar heat pump systems. Values are for reference and comparison purposes only

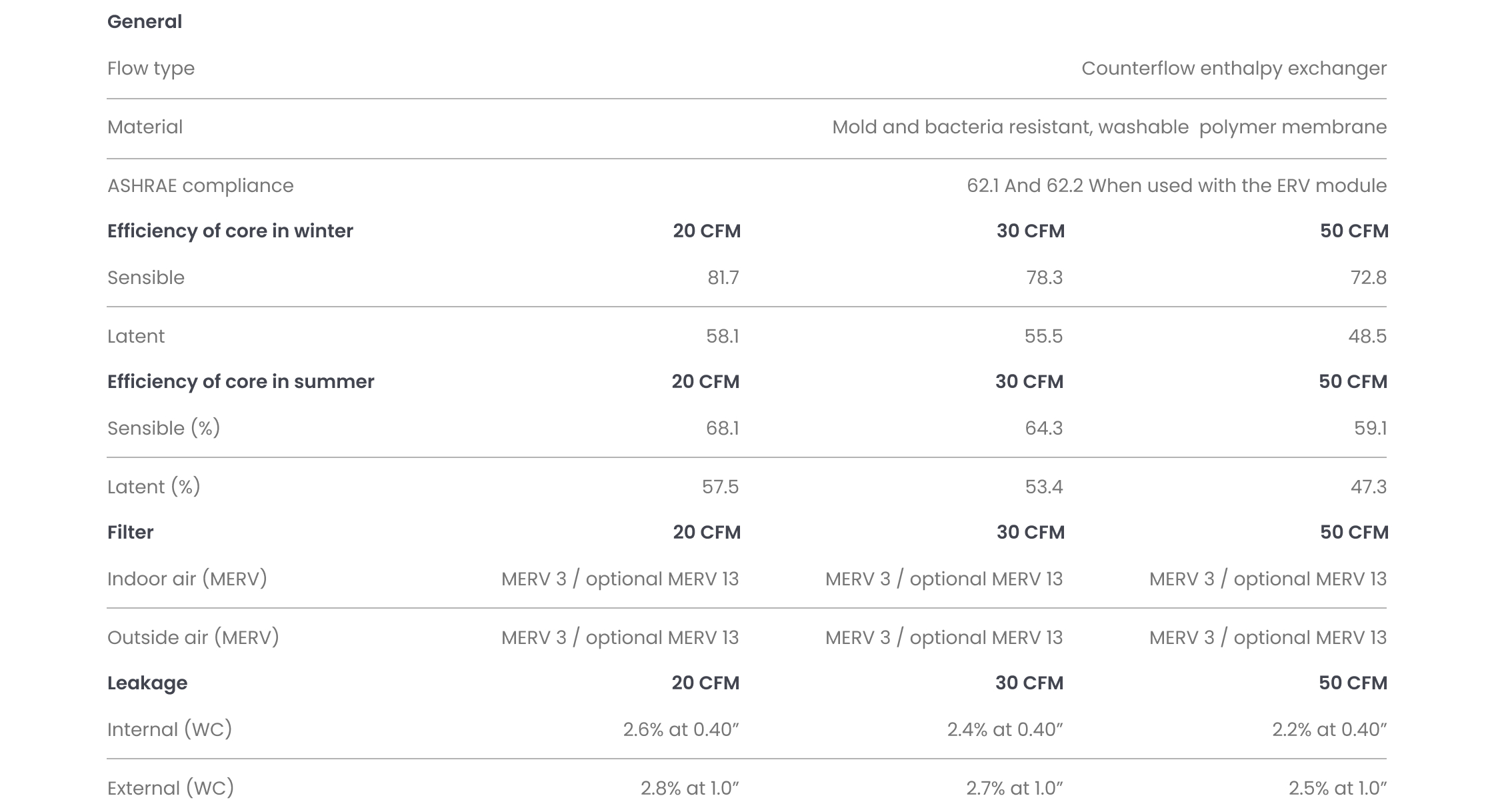

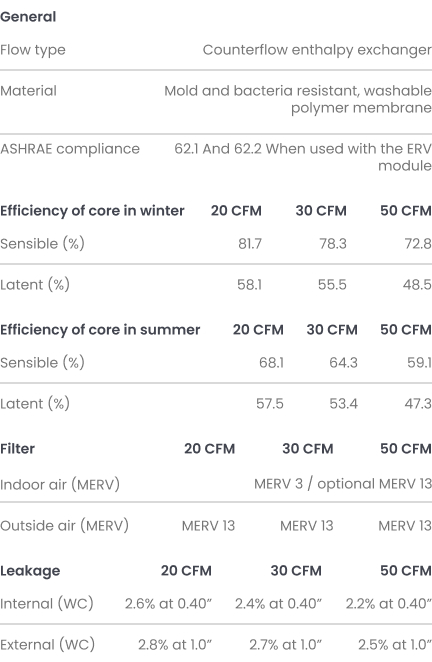

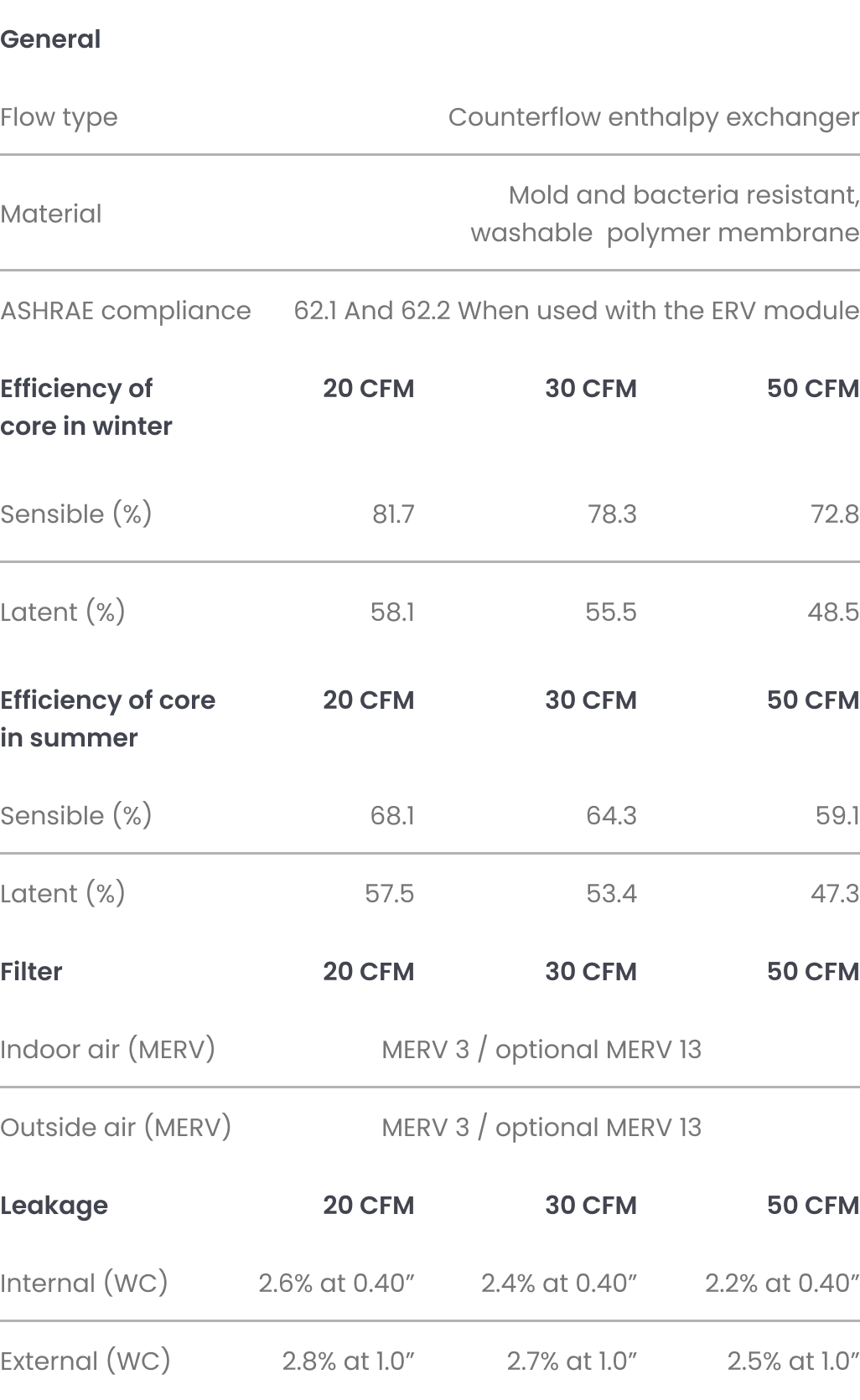

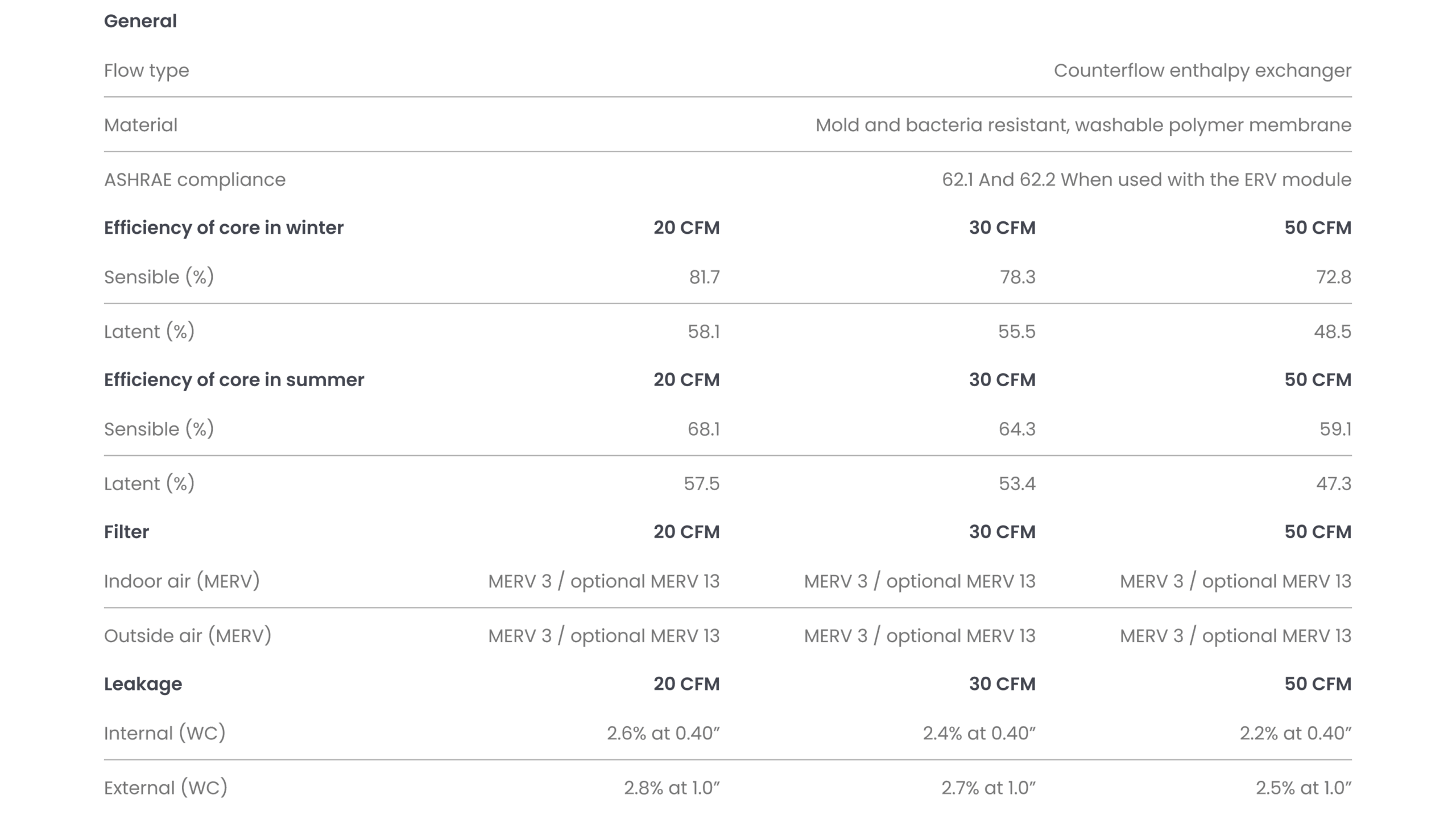

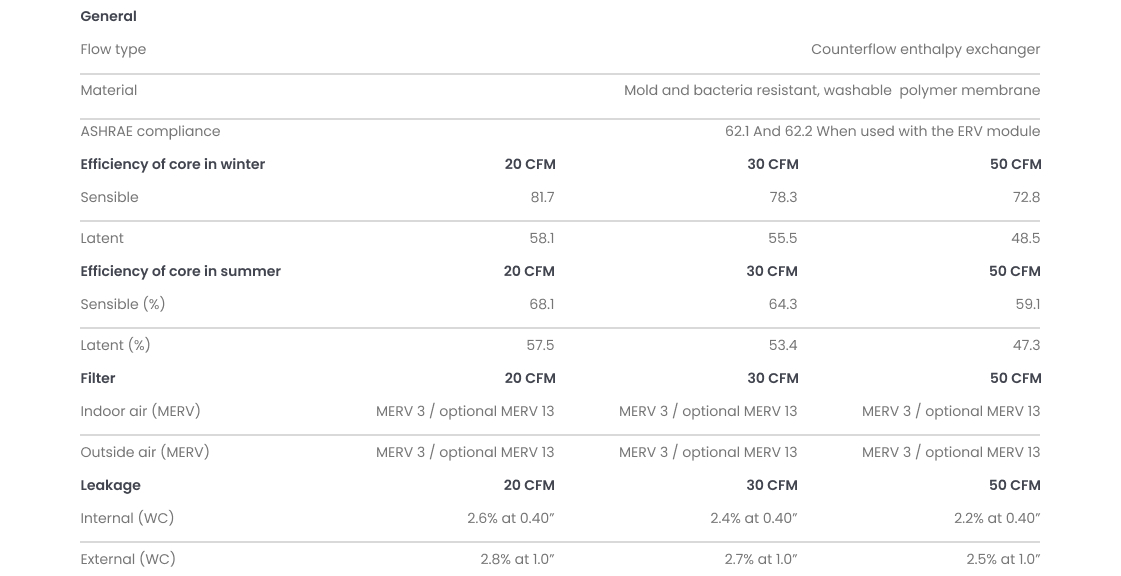

General

  • Flow type
  • Material
  • ASHRAE compliance



  • Counterflow enthalpy exchanger
  • Mold and bacteria resistant, washable polymer membrane
  • 62.1 And 62.2 When used with the ERV module

Efficiency of core in winter

  • Sensible (%)
  • Latent (%)

20 CFM

  • 81.7
  • 58.1

30 CFM

  • 78.3
  • 55.5

50 CFM

  • 72.8
  • 48.5

Efficiency of core in summer

  • Sensible (%)
  • Latent (%)



  • 68.1
  • 57.5



  • 64.3
  • 53.4



  • 59.1
  • 47.3

Filter

  •   Indoor air (MERV)
  • Outside air (MERV)



  • MERV 3 / optional MERV 13
  • MERV 13



  • MERV 3 / optional MERV 13
  • MERV 13



  • MERV 3 / optional MERV 13
  • MERV 13

Leakage

  • Internal (WC)
  • External (WC)



  • 2.6% at 0.40”
  • 2.8% at 1.0”



  • 2.4% at 0.40”
  • 2.7% at 1.0”



  • 2.2% at 0.40”
  • 2.5% at 1.0”

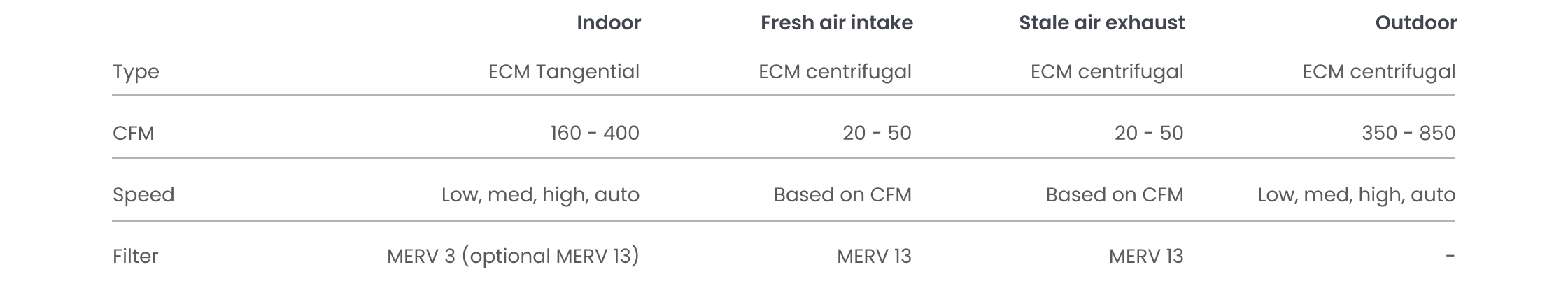

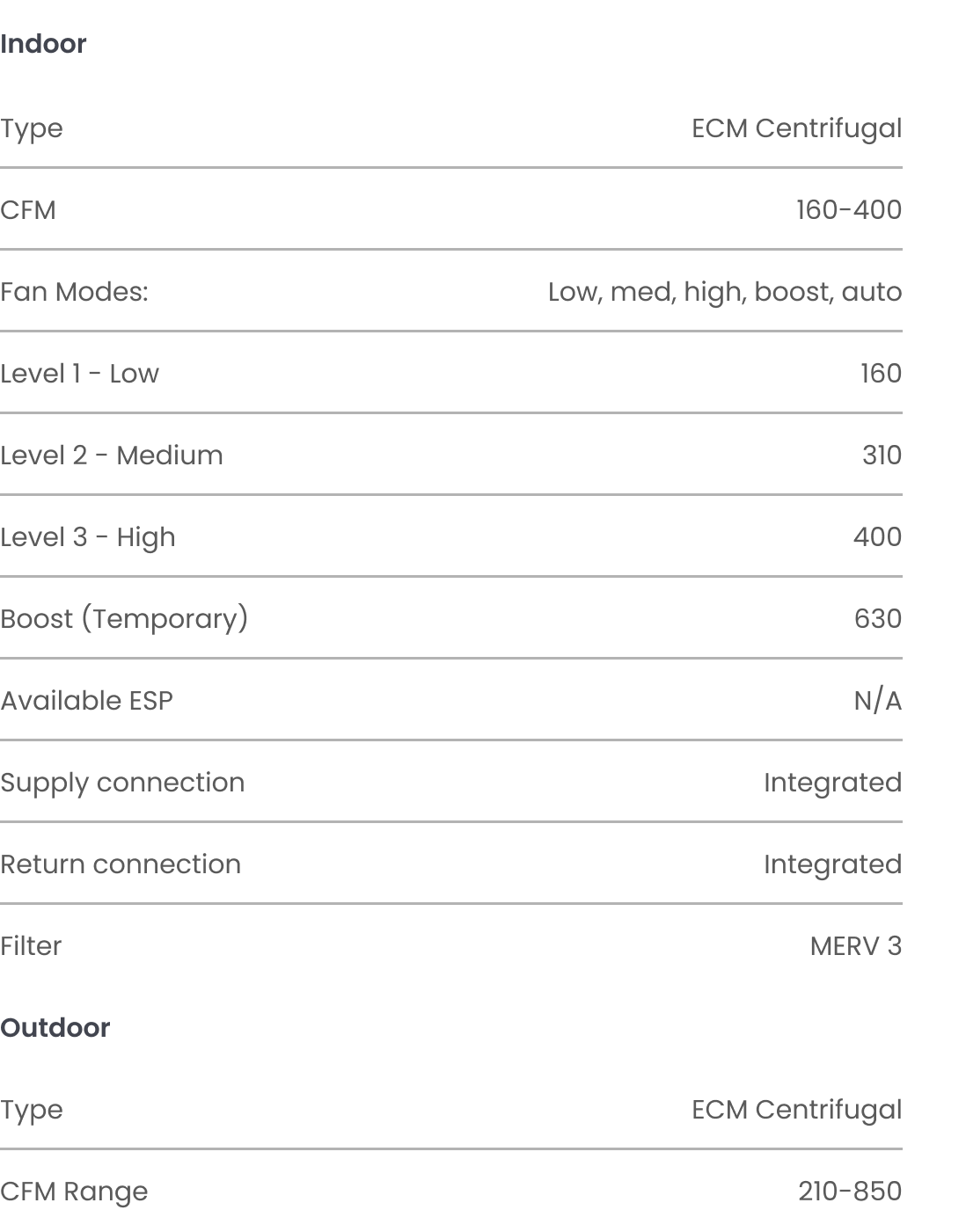

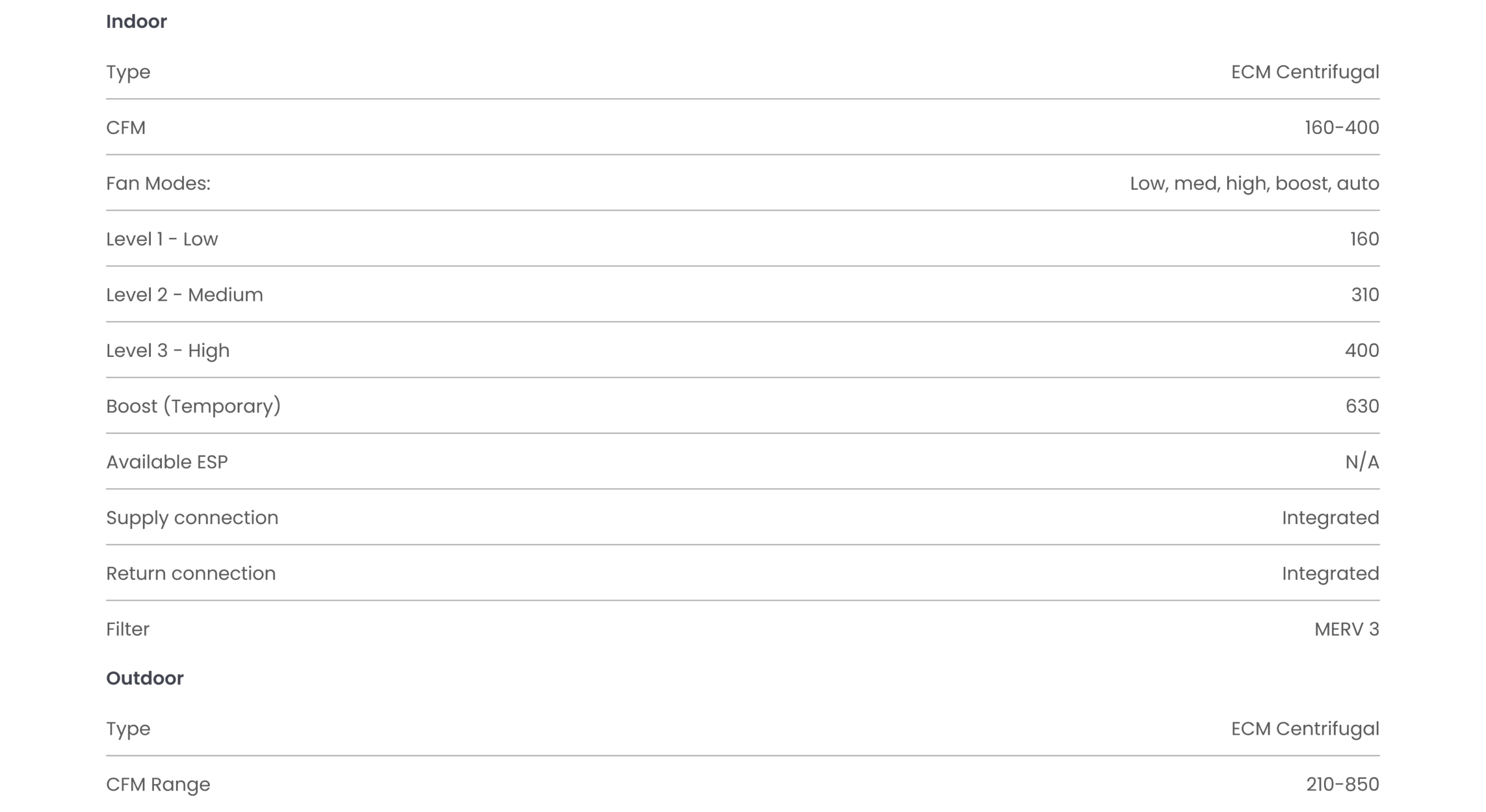

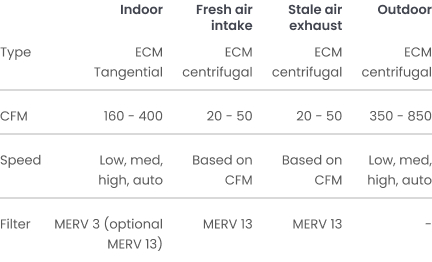

Indoor

  • Type
  • CFM
  • Fan Modes:
  • Level 1 - Low
  • Level 2 - Medium
  • Level 3 - High
  • Boost (Temporary)
  • Available ESP
  • Supply connection
  • Return connection
  • Filter

Outdoor

  • Type
  • CFM Range



  • ECM Centrifugal
  • 160-400
  • Low, med, high, boost, auto
  • 160
  • 310
  • 400
  • 630
  • N/A
  • Integrated
  • Integrated
  • MERV 3



  • ECM Centrifugal
  • 210-850

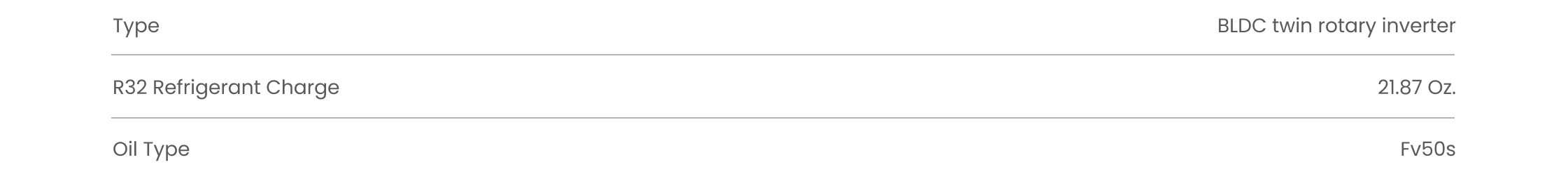

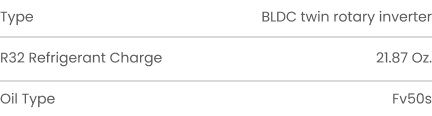

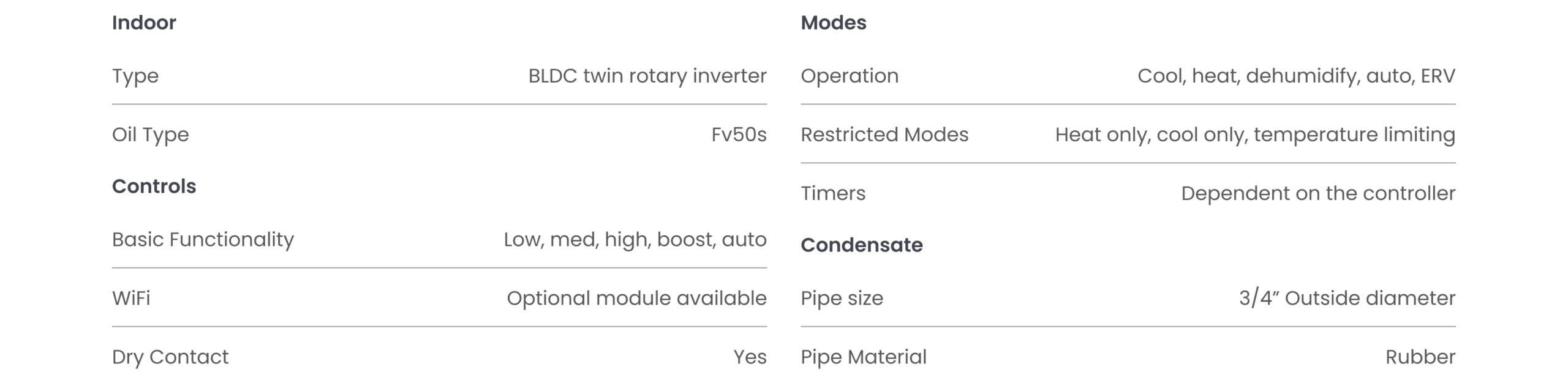

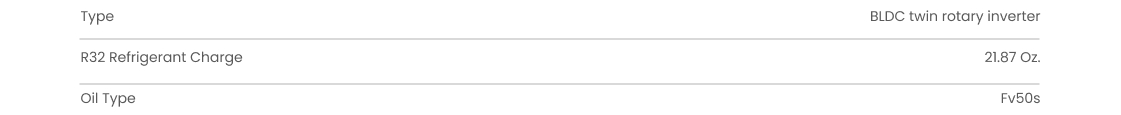

Indoor

  • Type
  • Oil Type

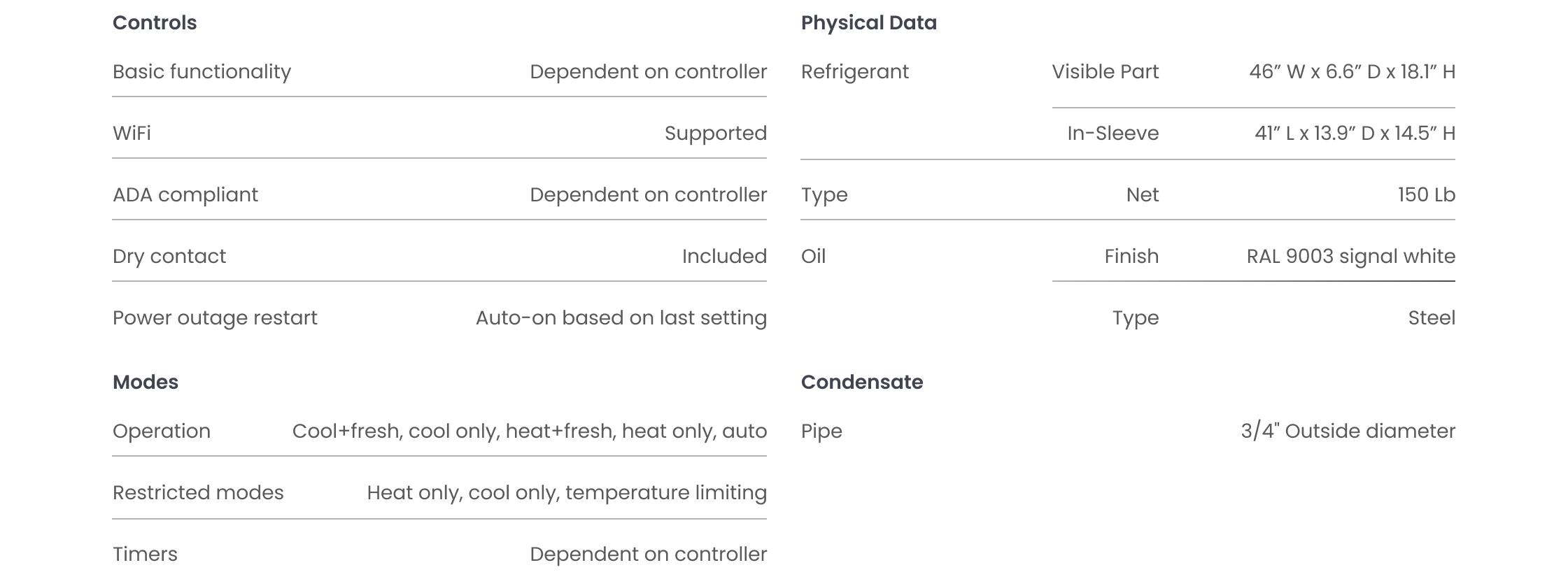

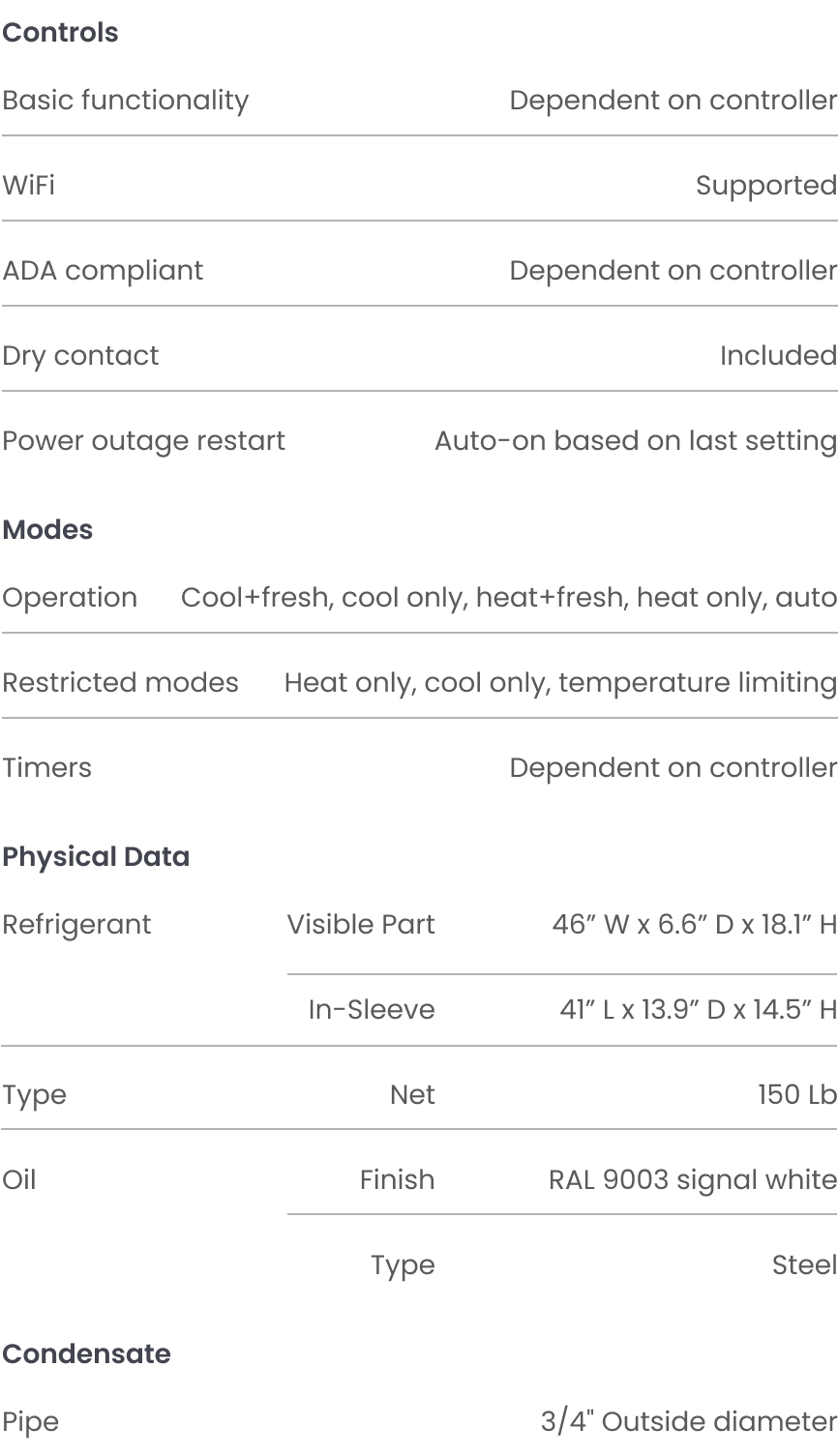

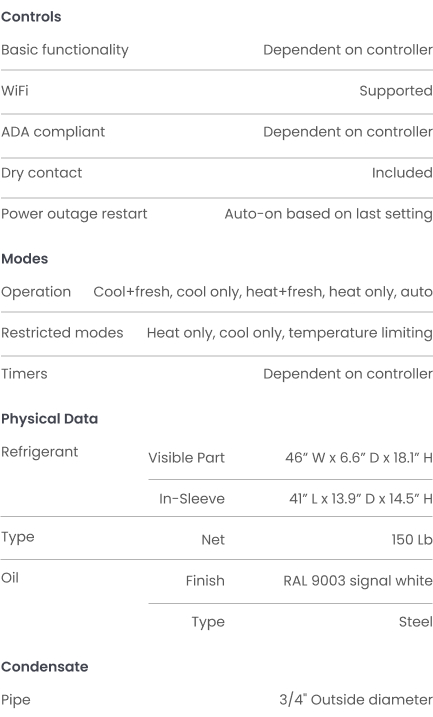

Controls

  • Basic Functionality
  • WiFi
  • Dry Contact

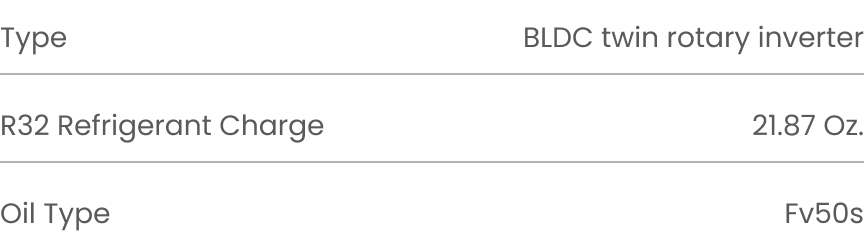

  • BLDC twin rotary inverter
  • Fv50s



  • Dependent on the controller
  • Optional module available
  • Yes

Modes

  • Operation
  • Restricted modes
  • Timers

Condensate

  • Pipe (Rubber)
  • Pipe Material



  • Cool, heat, dehumidify, auto, ERV
  • Heat only, cool only, temperature limiting
  • Dependent on controller



  • 3/4" Outside diameter
  • Rubber

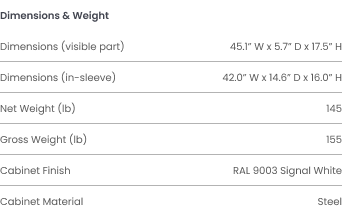

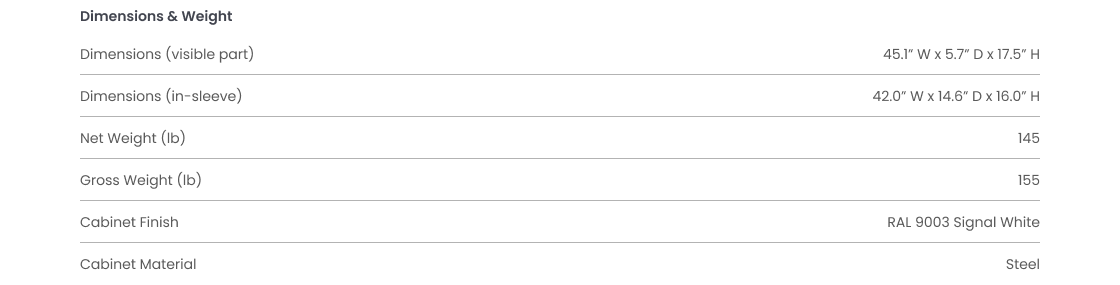

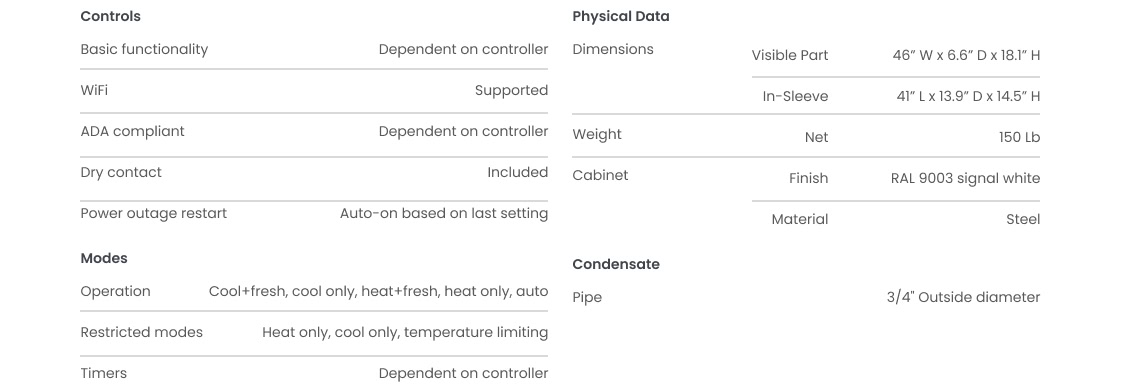

Physical Data

  • Dimensions (visible part)
  • Dimensions (in-sleeve)
  • Net Weight (lb)
  • Gross Weight (lb)
  • Cabinet Finish
  • Cabinet Material



  • 45.1” W x 5.7” D x 17.5” H
  • 42.0” W x 14.6” D x 16.0” H
  • 145
  • 155
  • RAL 9003 Signal White
  • Steel

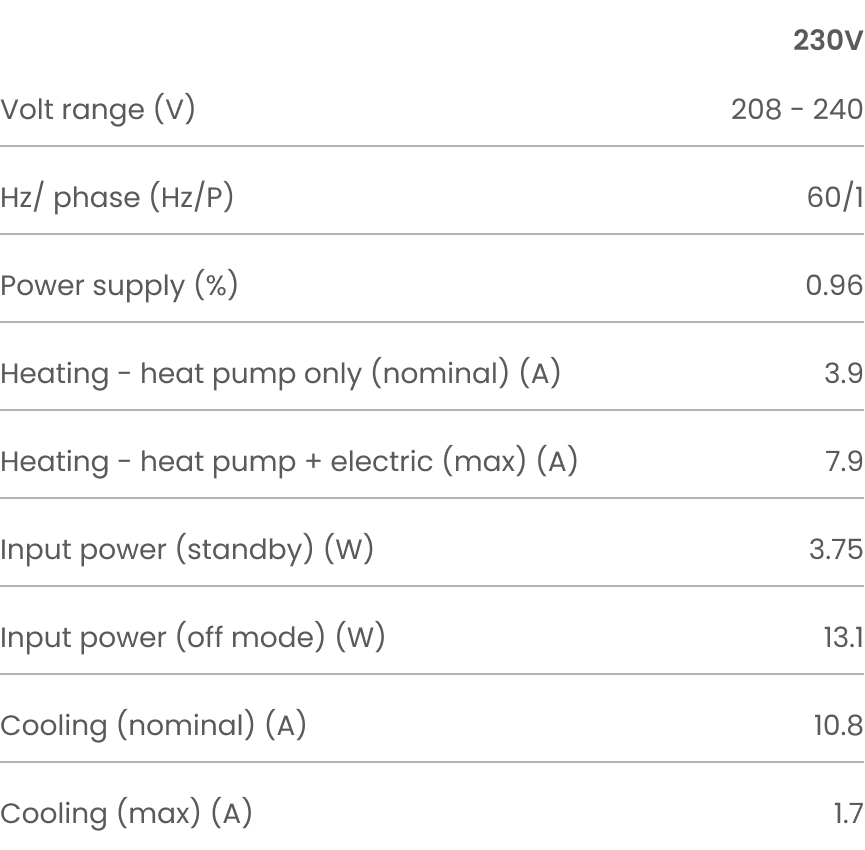

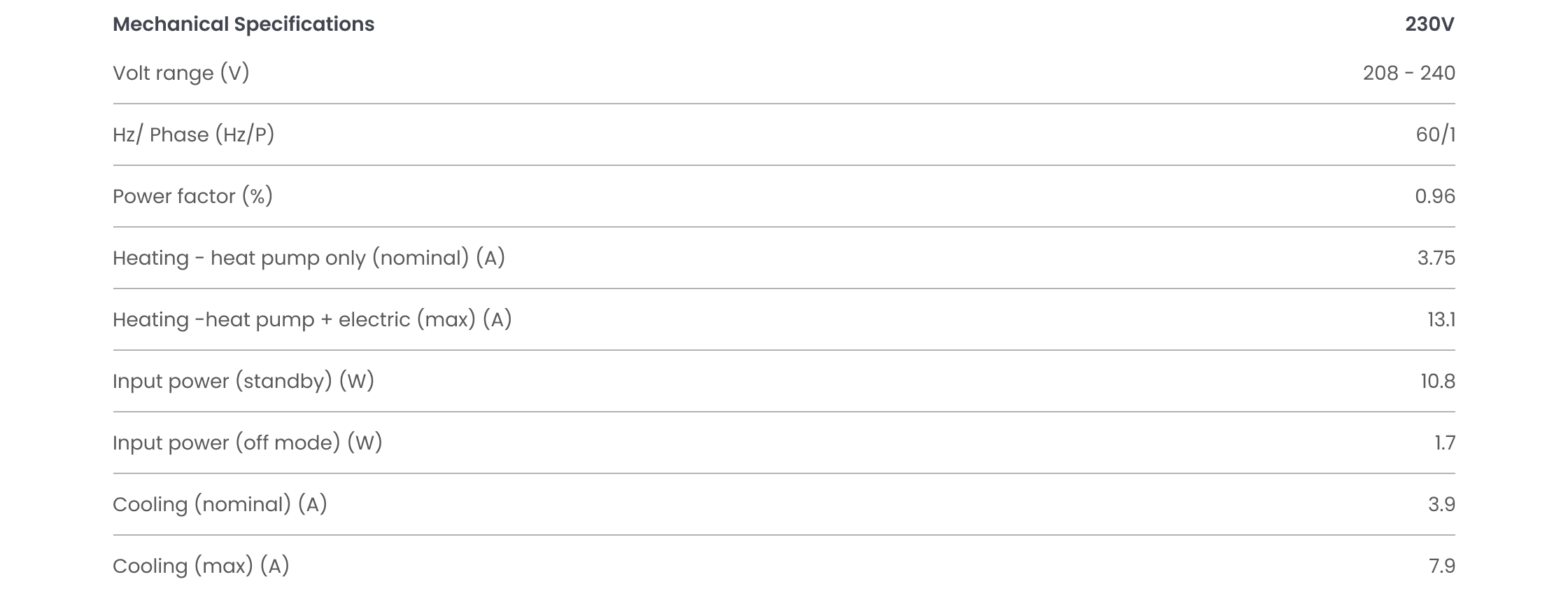

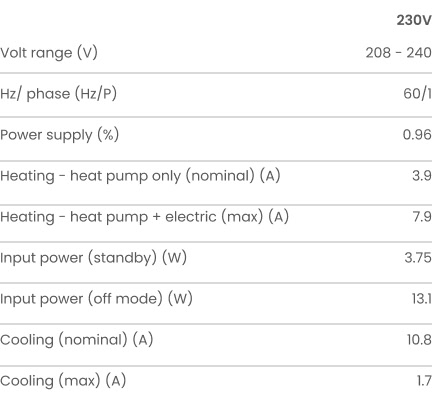

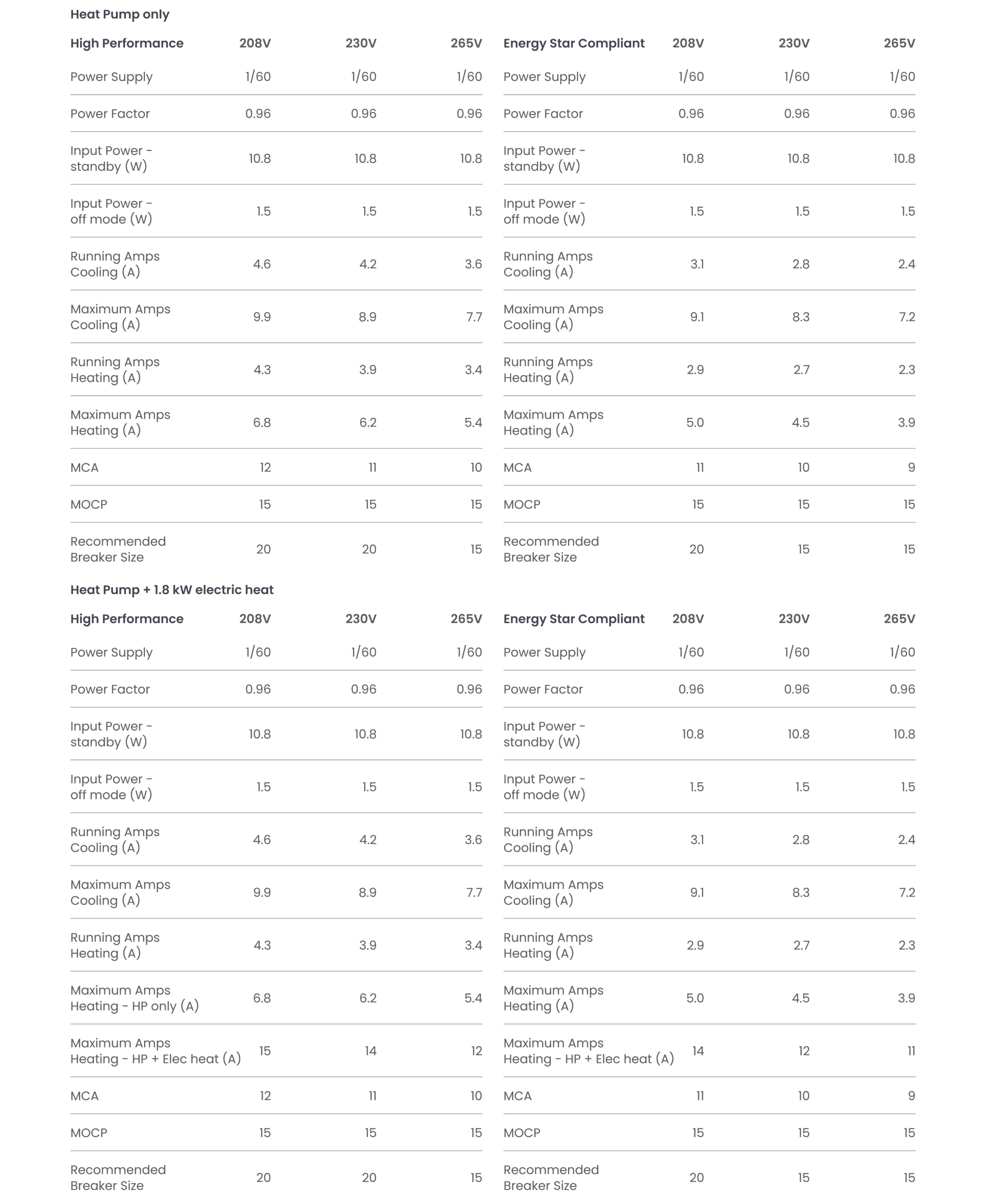

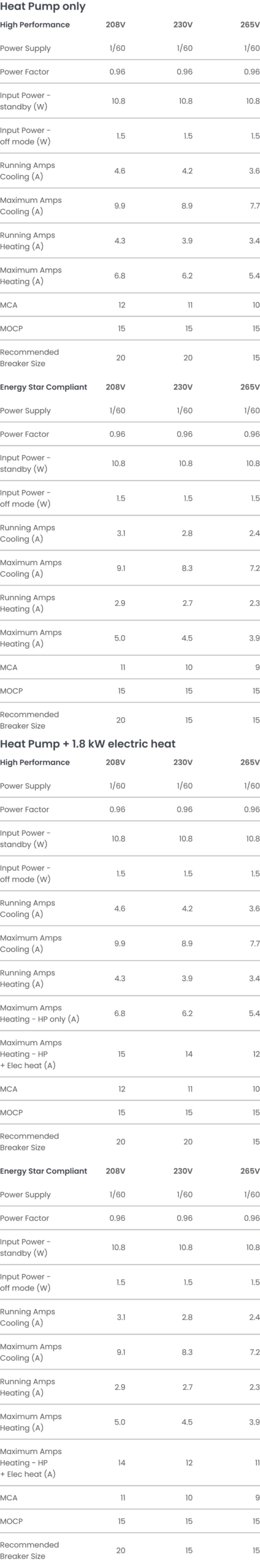

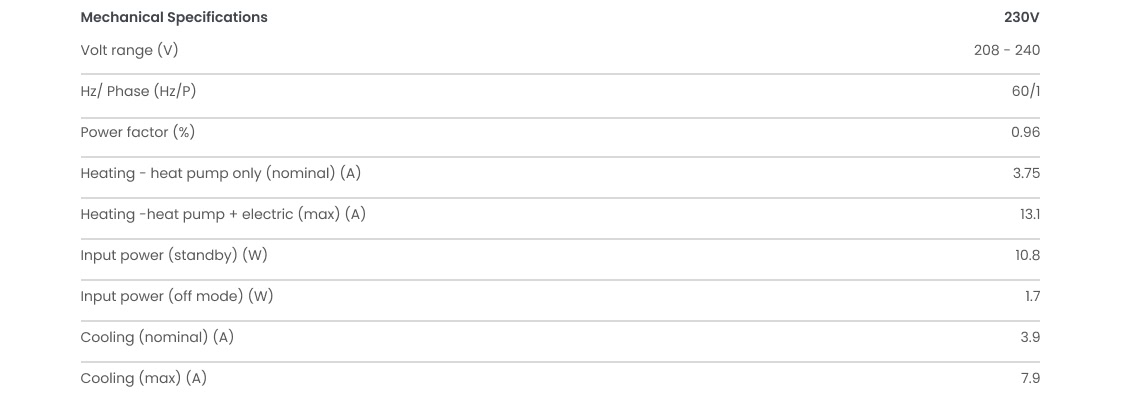

Heat Pump only

High Performance

  • Power Supply
  • Power Factor
  • Input Power standby (W)
  • Input Power -off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating (A)

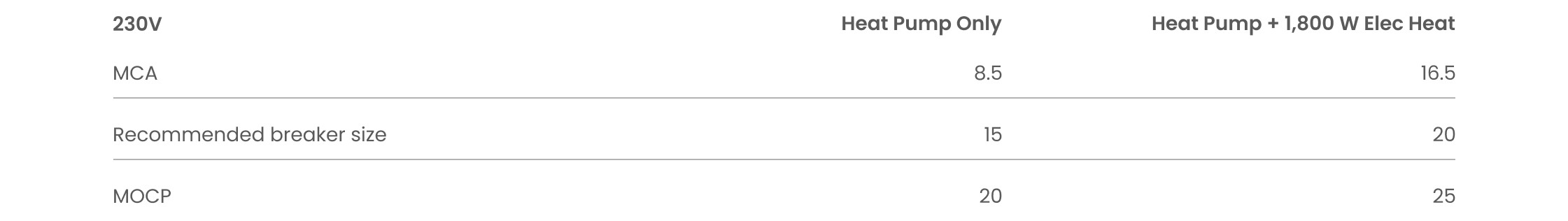

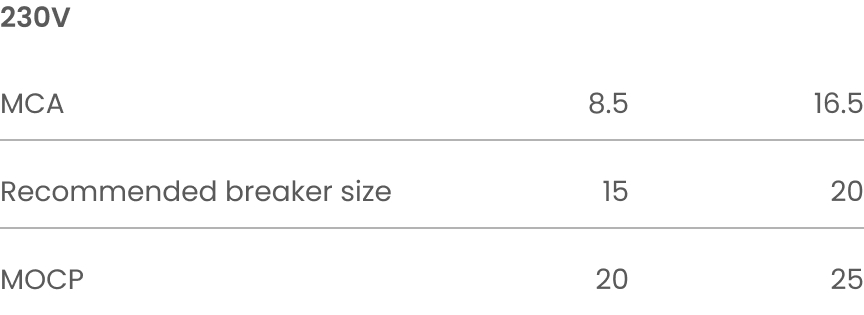

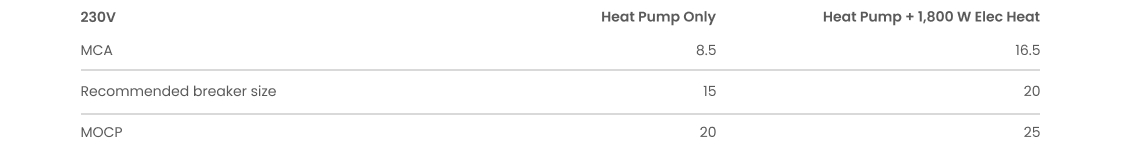

  • MCA
  • MOCP
  • Recommended Breaker Size



208V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.6
  • 9.9
  • 4.3
  • 6.8
  • 12
  • 15
  • 20



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.2
  • 8.9
  • 3.9
  • 6.2
  • 11
  • 15
  • 20



265V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 3.6
  • 7.7
  • 3.4
  • 5.4
  • 10
  • 15
  • 15



Energy Star Compliant

  • Power Supply
  • Power Factor
  • Input Power standby (W)
  • Input Power -off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating (A)
  • MCA
  • MOCP
  • Recommended Breaker Size



208V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 3.1
  • 9.1
  • 2.9
  • 5.0
  • 11
  • 15
  • 20



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.8
  • 8.3
  • 2.7
  • 4.5
  • 10
  • 15
  • 15



265V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.4
  • 7.2
  • 2.3
  • 3.9
  • 9
  • 15
  • 15

Heat Pump + 1.8 kW electric heat

High Performance

  • Power Supply
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A) - HP only (A)
  • Maximum Amps
    Heating - HP + Elec heat (A)
  • MCA
  • MOCP
  • Recommended Breaker Size



208V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.6
  • 9.9
  • 4.3
  • 6.8

  • 15

  • 12
  • 15
  • 20



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.2
  • 8.9
  • 3.9
  • 6.2

  • 14

  • 11
  • 15
  • 20



265V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 3.6
  • 7.7
  • 3.4
  • 5.4

  • 12

  • 10
  • 15
  • 15



Energy Star Compliant

  • Power Supply
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A) - HP only (A)
  • Maximum Amps
    Heating - HP + Elec heat (A)
  • MCA
  • MOCP
  • Recommended Breaker Size



208V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 3.1
  • 9.1
  • 2.9
  • 5.0

  • 14

  • 11
  • 15
  • 20



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.8
  • 8.3
  • 2.7
  • 4.5

  • 12

  • 10
  • 15
  • 15



265V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.4
  • 7.2
  • 2.3
  • 3.9

  • 11

  • 9
  • 15
  • 15

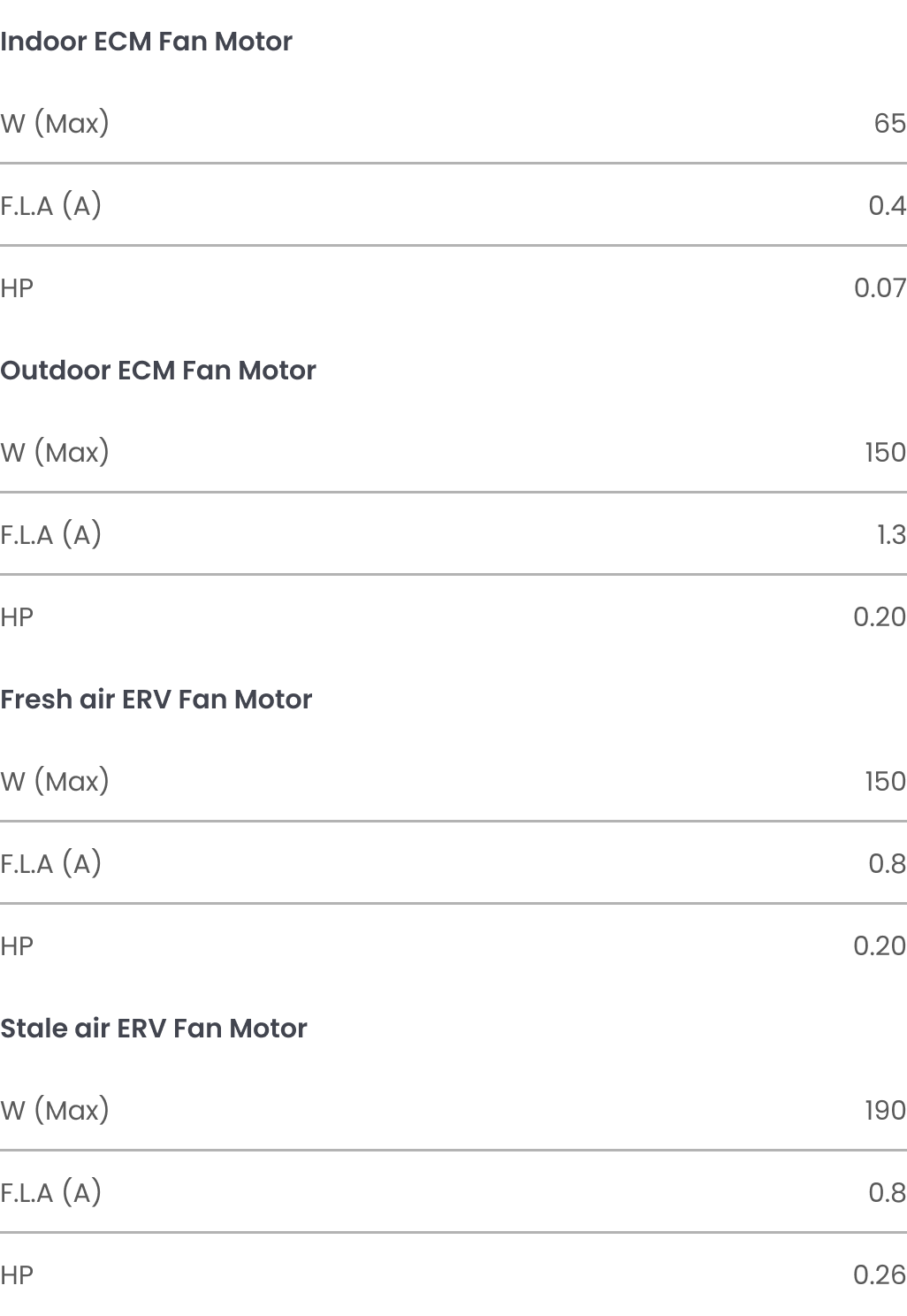

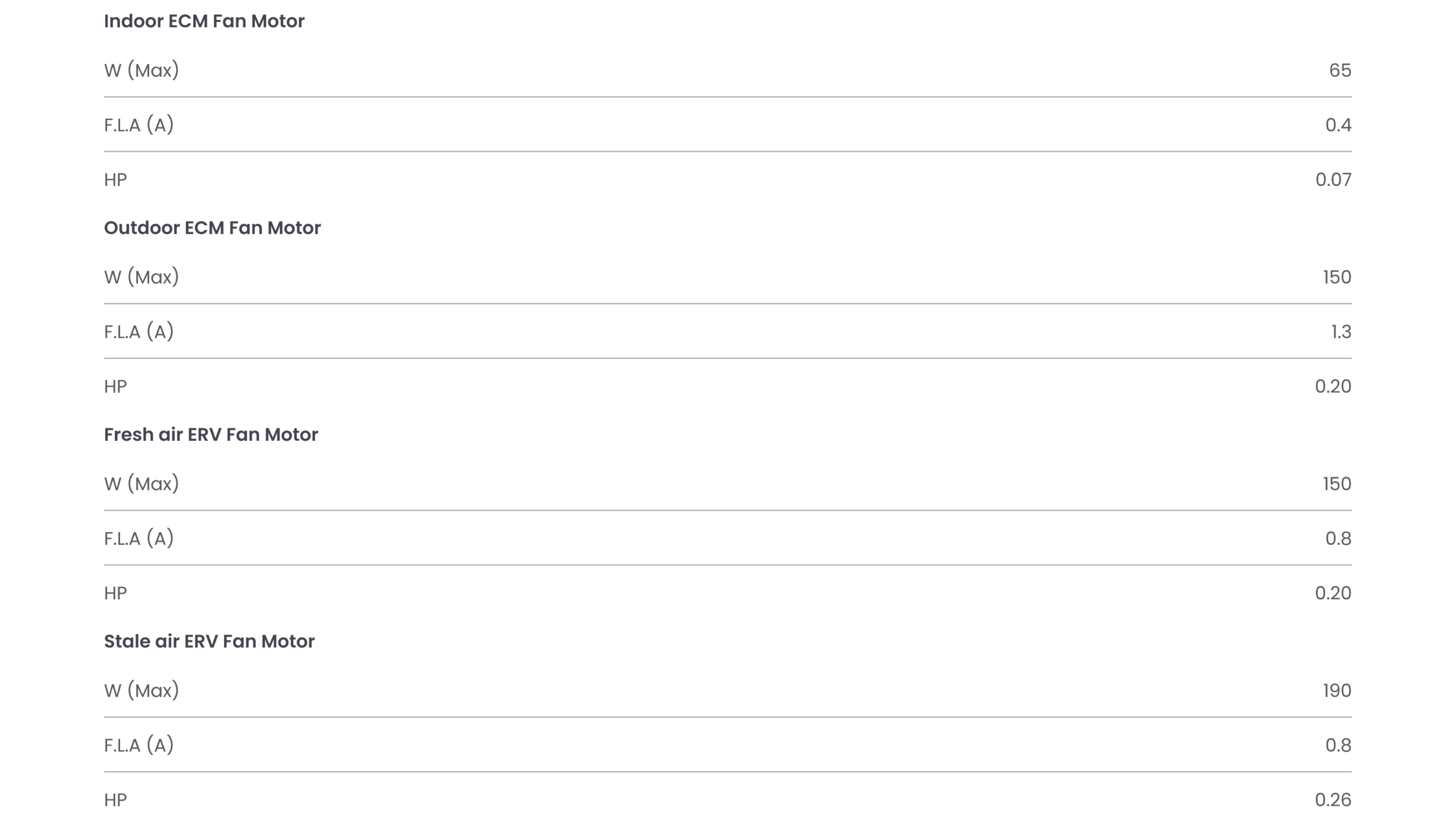

Indoor ECM Fan Motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

Outdoor ECM Fan Motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

Fresh air ERV Fan Motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

Stale air ERV Fan Motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)



  • 65
  • 0.4
  • 0.07



  • 150
  • 1.3
  • 0.2



  • 150
  • 0.8
  • 0.20



  • 190
  • 0.8
  • 0.26

LCDI Power Cord

(for 208/230V units)

  • Standard Length (Inches)
  • Standard Length (SKU)
  • Extra short (Inches)
  • Amperage (A)
  • Plug (NEMA)

Standard power cord

(for 265/277V units)

  • Length (Inches)
  • Amperage (A)
  • Plug (NEMA)

Quick-connection whip

  • Length (Inches)

Heat Pump Only



  • 89
  • -
  • 12
  • 15
  • 6-15





  • 60
  • 15
  • 7-15



  • 40

Heat Pump + 1.8 kW Elec heat



  • 89
  • -
  • 12
  • 20
  • 6-20





  • 60
  • 15
  • 7-15



  • 40

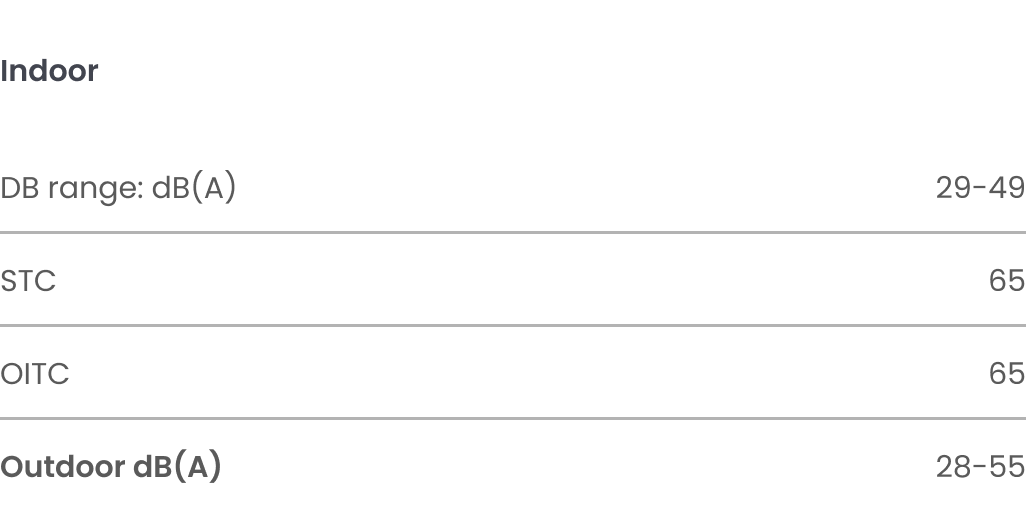

Indoor

  • DB range: dB(A)
  • STC
  • OITC
  • Outdoor dB(A)



  • 29-49
  • 40
  • 35
  • 28-55
  • Included
  • Included
  • Included
  • Optional Extended
  • 3 Years
  • +7 Years
  • +7 Years
  • 5, 10 and 15 Years
  • Comprehensive parts and labor
  • parts
  • Compressorparts and labor
  • Comprehensive parts and labor

Don’t Miss Out – Order Today!

With limited units available for 2026, now is the time to secure your Nextac heat pumps. Click below to preorder and enjoy exclusive savings before it’s too late.

Order Now

Trusted by leading brands worldwide
