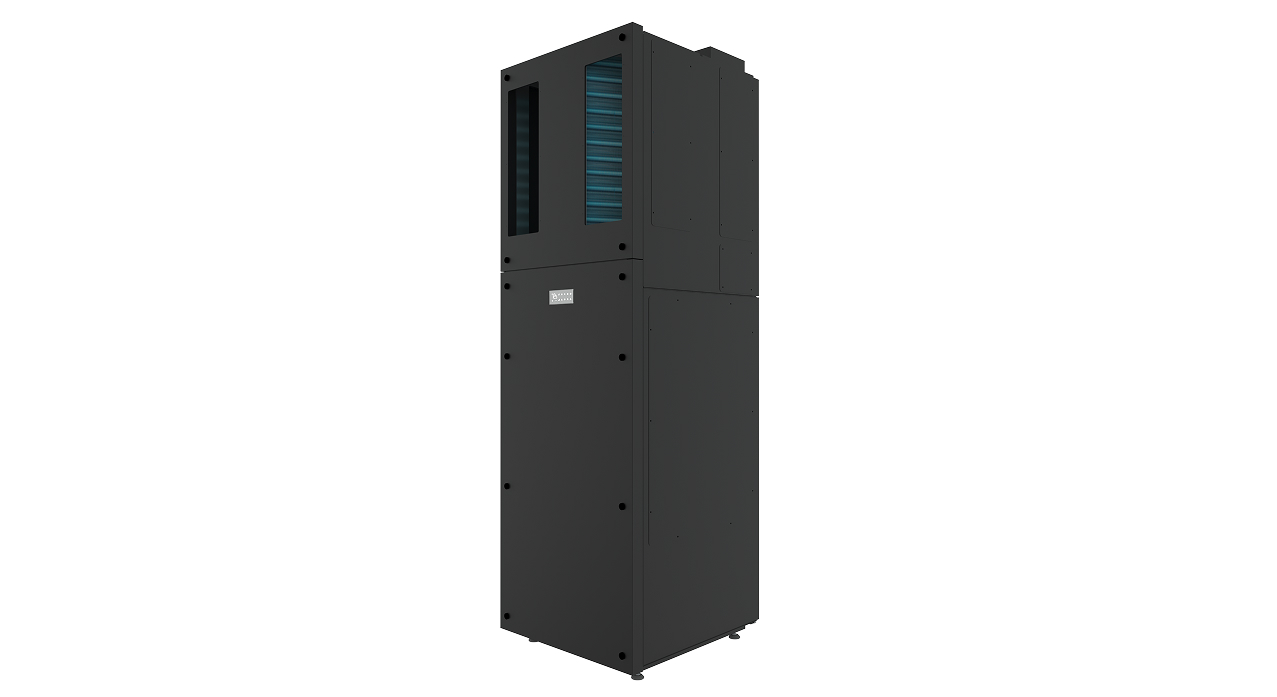

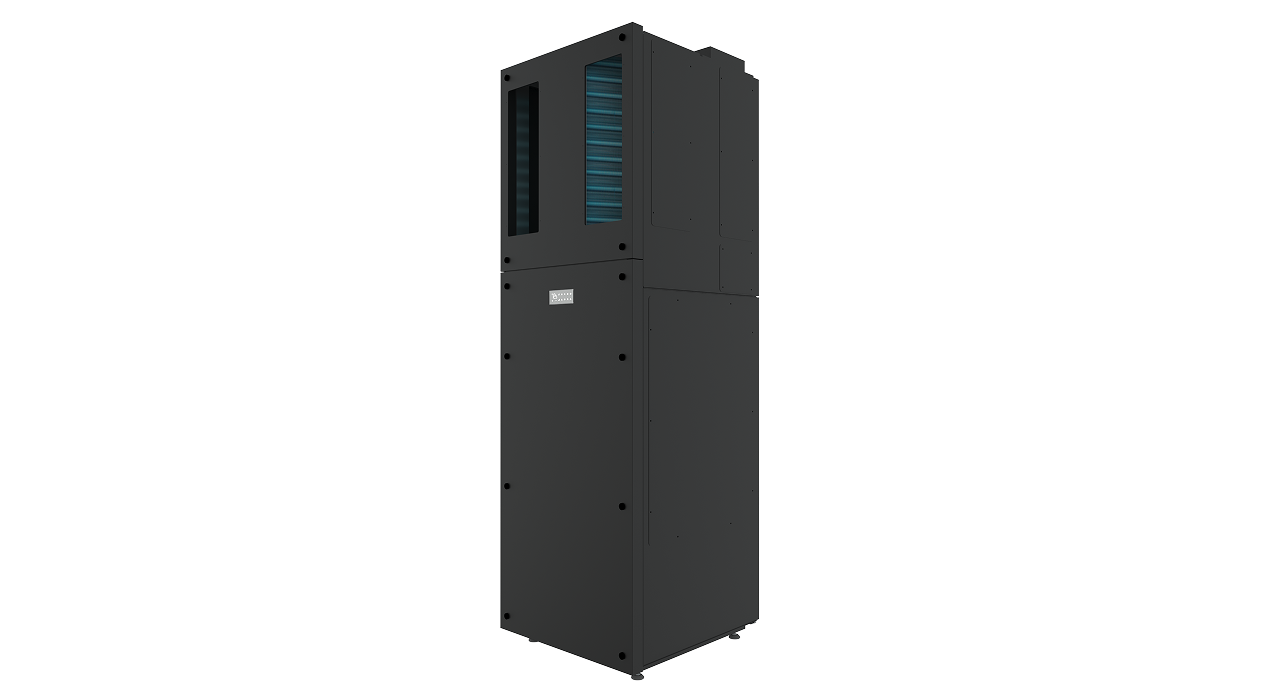

Nextac Model V
Nextac Model V is designed to fit standard VTAC closets and louvers, serving as an ideal replacement for existing VTAC units and a premier choice for new construction projects. While it maintains a foundational structure similar to traditional VTAC units, Model V distinguishes itself through its unique design and technological advancements.

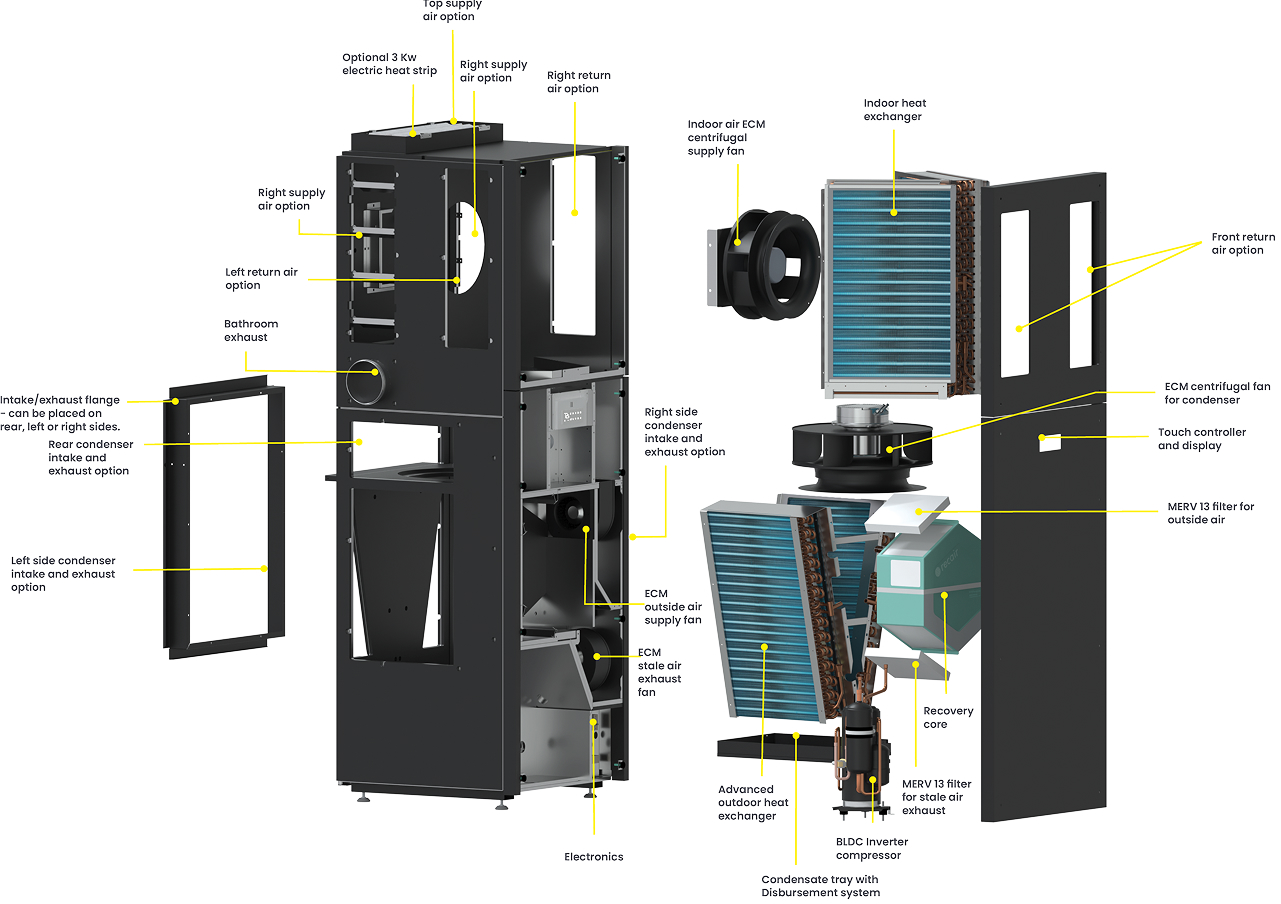

Featuring exceptionally flexible ducting Model V allows for room supply from the top or sides, room return air from the sides or front, and condenser intake/exhaust from the rear, left, and right sides. In contrast to noisy VTAC operation, Model V operates with whisper-quiet efficiency. Its energy efficiency is powered by a twin rotory BLDC inverter compressor and integrated ERV, surpassing traditional VTACS, especially during electric heating and outdoor air utilization.
Unlike traditional VTACS that necessitate placement on an external wall, Model V offers the flexibility to be installed anywhere in the room and ducted to the outside. Moreover, it provides the capability to duct into two rooms, each with its own supply and return.
List Price from $9,340.
Comfort
Cooling Efficiency
Heating Efficiency
Infiltration
Quiet
Venting Flexibility
Fresh Air
Nextac V
VTAC
VTHP
Key Features
User Experience
- Silent operation at 27 dBA
- Compact format and flexible ducting saves space
- Option for washable filters or MERV 8 to MERV 13 rated filters for room air
- Convenient access to MERV 13 filters for outside air
- Auto-restart feature
- Maintains uniform and consistent temperatures
- Backed by a 10-year limited warranty
Operations
- Offers cooling heating, dehumidification, and auto modes
- Provides up to 80 CFM of fresh air
- Selectable fan speeds: low, medium, high, and auto
- Programmable outside air intake
- Includes a connection for bathroom exhaust
- Efficient condensate disbursement system for cooling
- Features sound and thermal barriers
- Easy installation-compatible with any standard VTAC closet and louver
- Extraordinarily flexing venting options allow for multiple room air and condenser air configurations.
- Wide range of capacity in a single unit
Options
- 3,600W electric heating capability staged as 180W +1,800W
- Features a condensate disbursement system for heating
- AirSync technology for balanced airflow
- Compatible with both 115V and 230V power sources
- Offers hardwire or LCDI cord options
- Choice of refrigerants: R32 or R410a
Efficiency
- Features a twin rotary BLDC inverter compressor
- Integrated ERV for fresh air circulation
- Utilizes Recovery+ technology, leveraging exhaust air to enhance condenser performance for both heating and cooling
- Equipped with high-performance independent ECM fans for outside air supply and room air exhaust
- Utilizes high-performance, extra-large V shaped heat exchangers
- Incorporates a unique high-efficiency, high- performance backward ECM centrifugal condenser fan
- Includes a high-performance ECM centrifugal fon for room supply air
- Designed with a sound and thermal barrier for enhanced comfort
- Coils are self-cleaning for minimal maintenance requirements
Controls
- Onboard touch controller for programing and diagnostics
Optional Controllers:
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- Third party thermostat interface
- BACnet/Modbus interface
- WiFi App
- Central control system

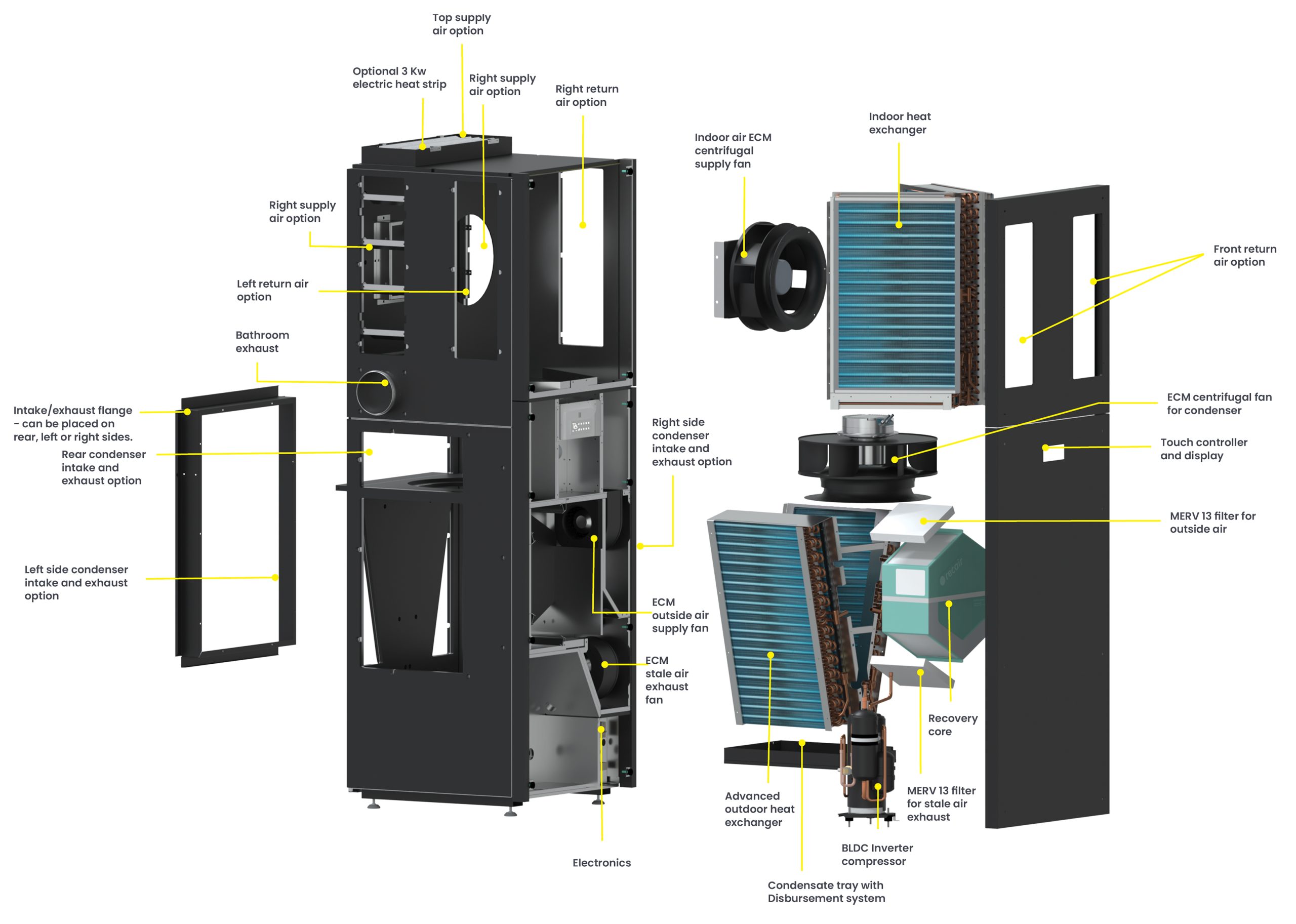

Discover the Power of Nextac Components

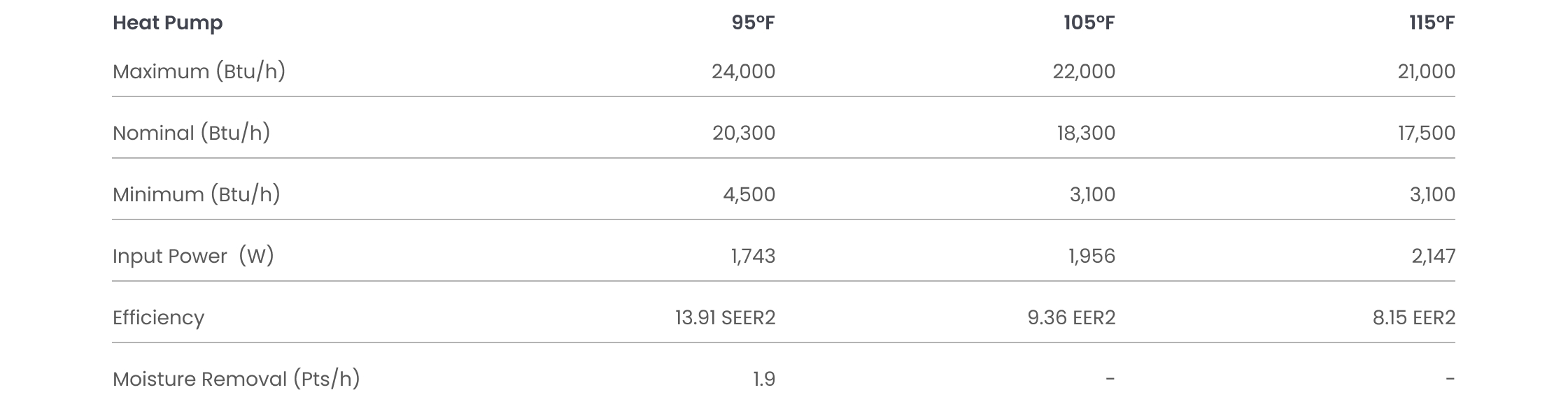

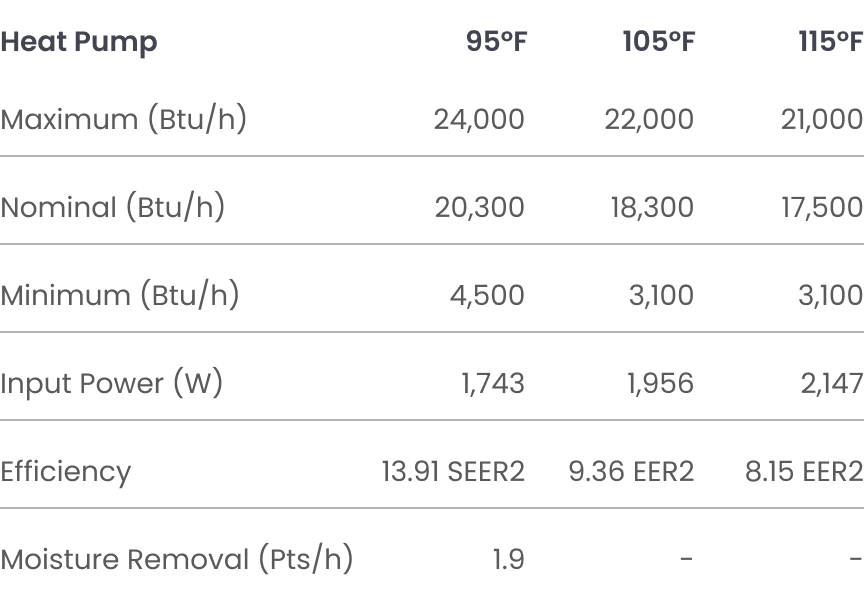

Technical Data
Sound
95°F1
105°F2
115°F3
| Heat Pump | ||||
|---|---|---|---|---|
| Maximum | 24,000 | 17,500 | 13,500 | |
| Nominal | Btu/h | 14,500 | 12,900 | 11,800 |
| Minimum | 4,500 | 3,100 | 3,100 | |
| Input Power | W | 1,265 | 1,405 | 1,555 |
| Efficiency | SEER2 | 13.91 | - | - |
| EER | - | 9.21 | 7.62 | |
| Moisture Removal | Pts/h | 1.9 | - | - |

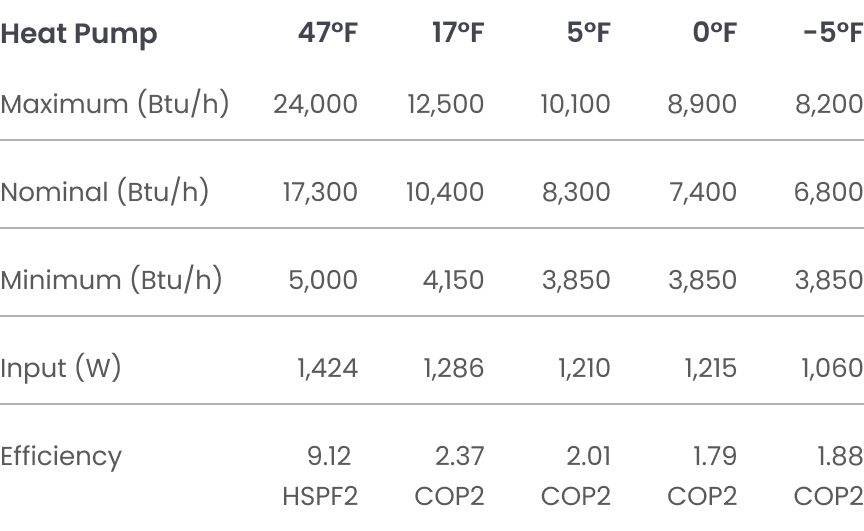

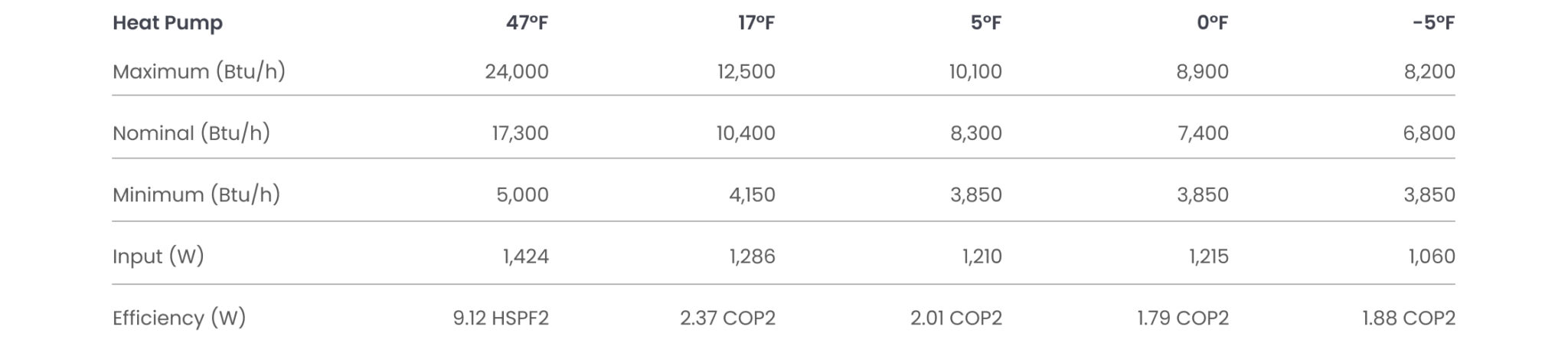

Heating
47°F4
17°F5
5°F6
0°F7
-5°F8
| Heat Pump (+ Optional 3,000 / 6,100 BTU/H elec heat) | ||||||
|---|---|---|---|---|---|---|
| Maximum 24,000 | 24,000 | 15,500 | 11,800 | 10,400 | 9,800 | |
| Nominal | Btu/h | 14,200 | 13,600 | 11,000 | - | - |
| Minimum | 5,000 | 4,150 | 3,850 | - | - | |
| Input W | W | 1,101 | 1,721 | 1,795 | 1,892 | 1,705 |
| Efficiency | HSPF2 | 9.12 | - | - | - | - |
| COP | 3.78 | 2.32 | 1.80 | 1.71 | 1.69 | |
| Heat Pump | |||
|---|---|---|---|
| 1 | 95°F | Indoor:80°F, W.B. 67°F | Outdoor:95°F, W.B. 75°F |
| 2 | 105°F | Indoor:80°F, W.B. 67°F | Outdoor:105°F, W.B. 75°F |
| 3 | 115°F | Indoor:80°F, W.B. 67°F | Outdoor:115°F, W.B. 75°F |
| 4 | 47°F | Indoor:70°F, W.B. 60°F | Outdoor:47°F, W.B. 43°F |
| 5 | 17°F | Indoor:70°F, W.B. 60°F | Outdoor:17°F, W.B. 13°F |
| 6 | 5°F | Indoor:70°F, W.B. 60°F | Outdoor:5°F, W.B. 3°F |
| 7 | 0°F | Indoor:70°F, W.B. 60°F | Outdoor:0°F, W.B. 0°F |
| 8 | - 5°F | Indoor:70°F, W.B. 60°F | Outdoor:-5°F |

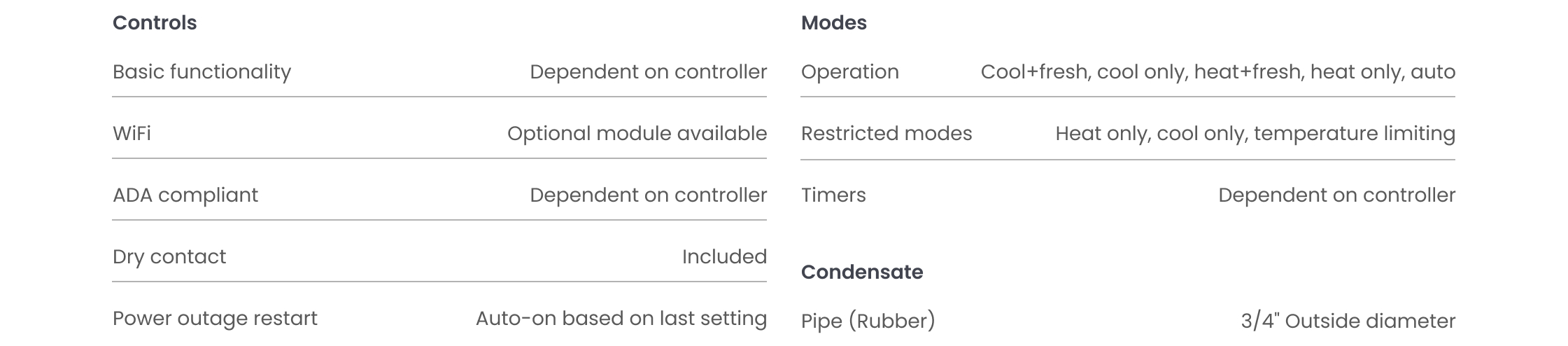

General

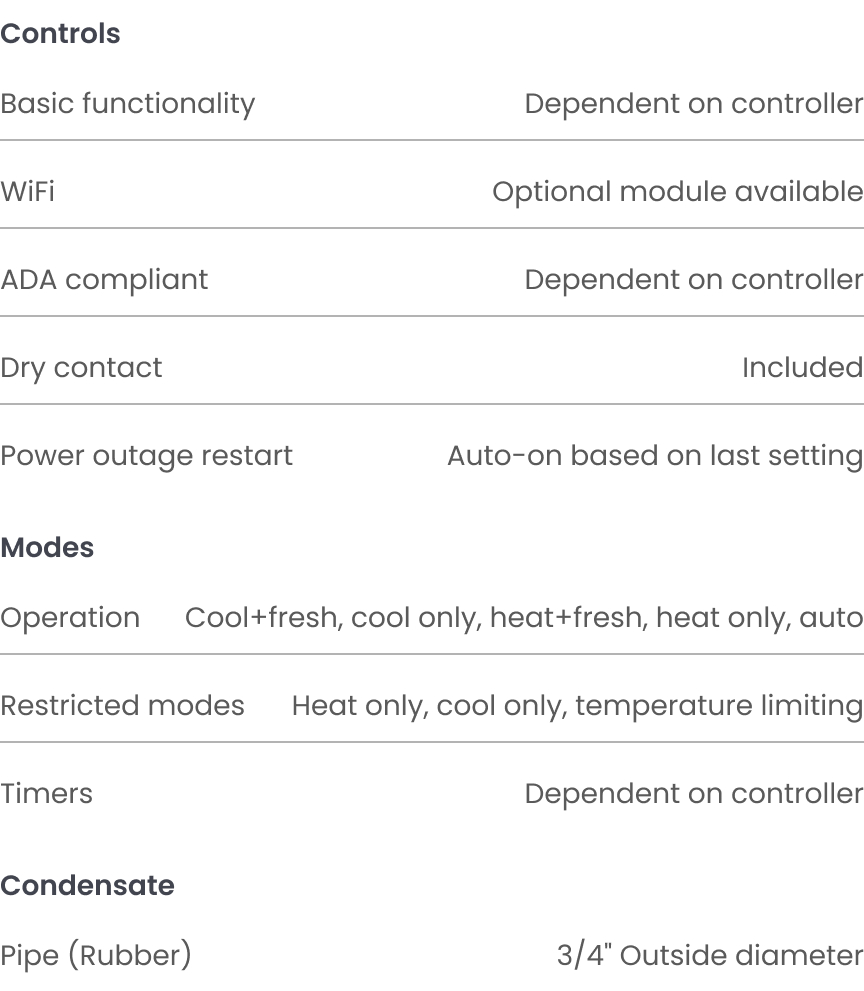

| Controls | |
|---|---|
| Basic functionality | Dependent on controller |
| WiFi | Optional module available |
| ADA compliant | Dependent on controller |
| Dry contact | Yes |
| Power outage restart | Auto-on based on last setting |
| Modes | |
|---|---|
| Operation | Cool+ fresh air, cool only, heat+ fresh air, heat only, auto |
| Restricted modes | Heat only, cool only, temperature limiting |
| Timers | Dependent on controller |
| Condensate | ||
|---|---|---|
| Pipe | Size | 3/4 |
| Material | Rubber | |

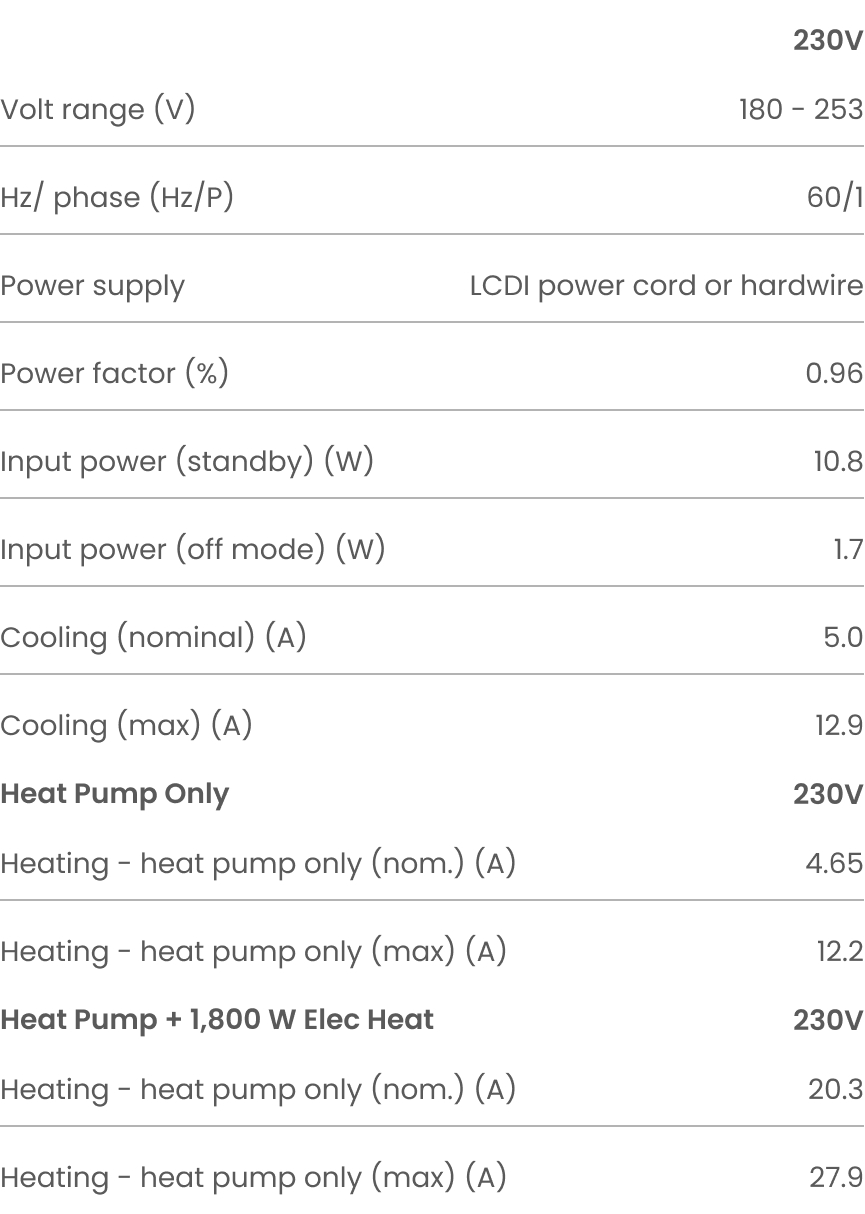

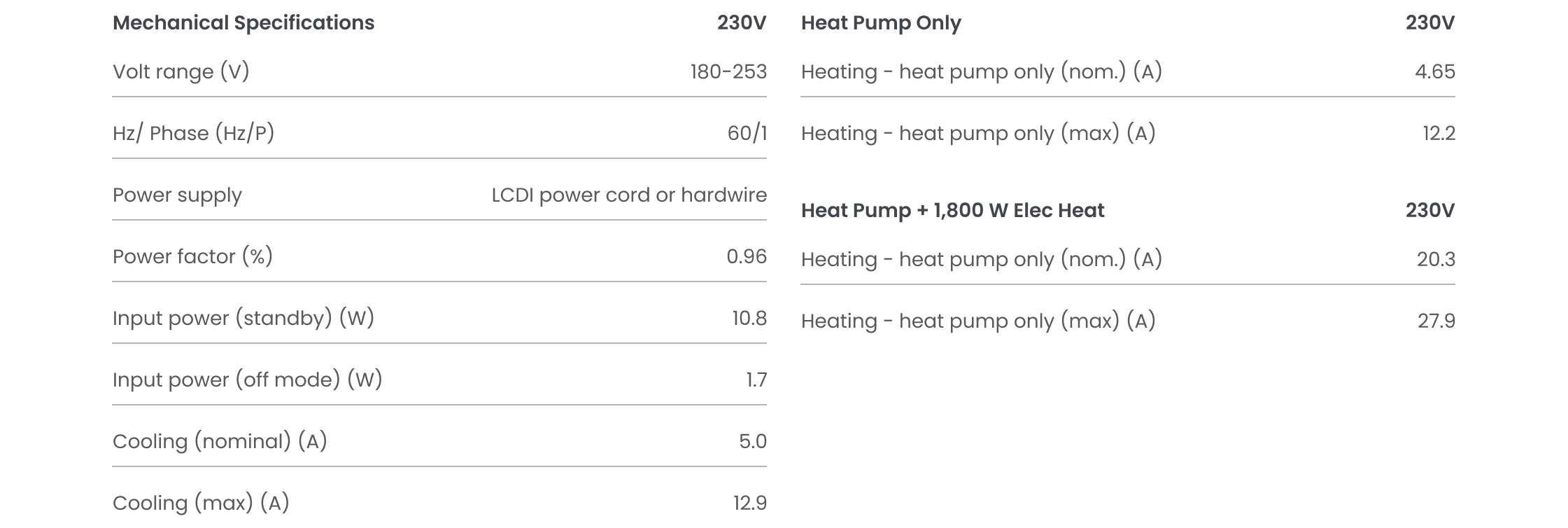

Electrical
| General | 230V | |
|---|---|---|
| Volt Range | 180-253 | |
| Hz/Phase | 60 Hz single phase | |
| Power supply | LCDI power cord or hardwire | |
| Power factor (%) | 0.96 | |
| Input power (standby) | W | 10.8 |
| Input power (off mode) | 1.7 | |
| Cooling (nominal) | A | 5.0 |
| Cooling (max) | 12.9 | |
| Heat Pump Only | ||
|---|---|---|
| Heating - heat pump only (nom.) | A | 4.65 |
| Heating - heat pump only (max) | 12.2 | |
| Heat Pump + 900 W Elec Heat | ||
|---|---|---|
| Heating - heat pump + 900 W Elec Heat (nom.) | A | 12.5 |
| Heating - heat pump + 900 W Elec Heat (max) | 20.0 | |
| Heat Pump + 1,800 W Elec Heat | ||
|---|---|---|
| Heating - heat pump + 1,800 W Elec Heat (nom.) | A | 20.3 |
| Heating - heat pump + 1,800 W Elec Heat (max) | 27.9 | |

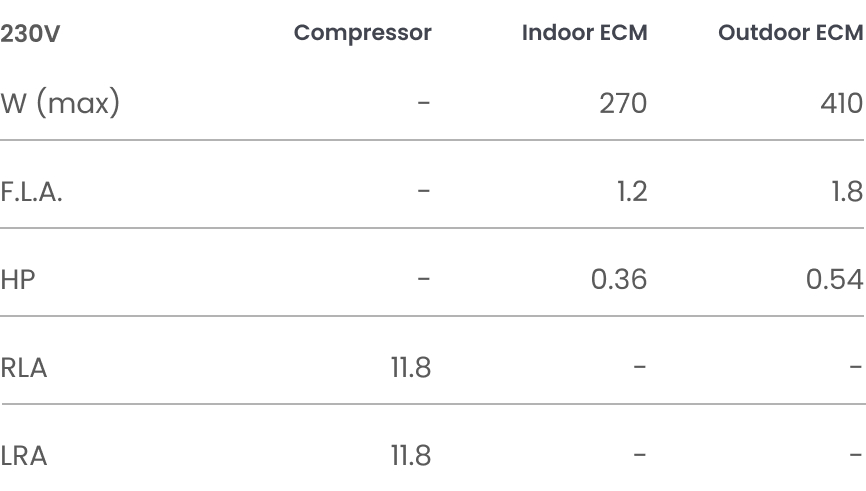

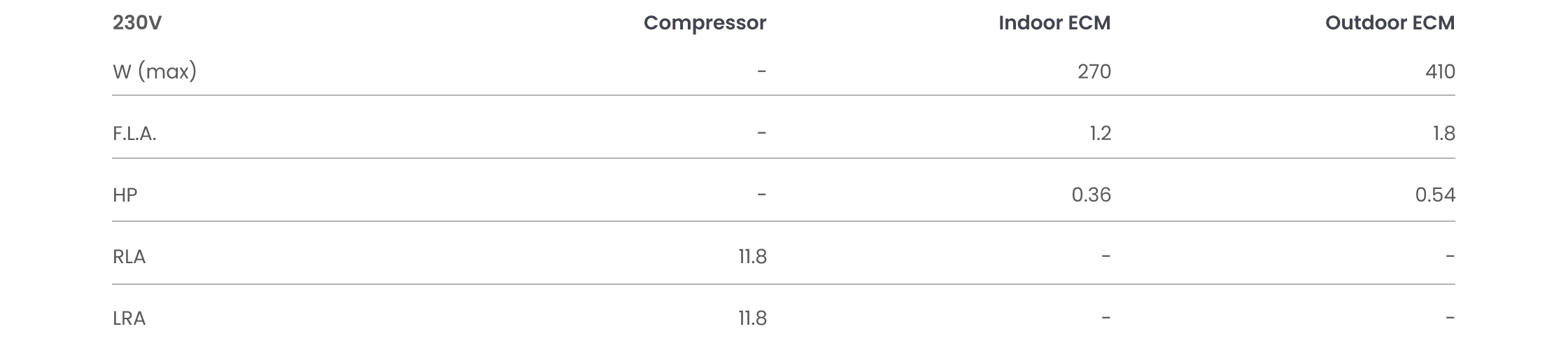

| Motors | 230V | ||
|---|---|---|---|
| Compressor | RLA | A | 11.8 |
| LRA | A | 11.8 | |
| Indoor ECM fan motor | W (max) | A | 270 |
| F.L.A. | A | 1.2 | |
| HP | A | 0.36 | |
| Outdoor ECM fan motor | W (max) | A | 410 |
| F.L.A. | A | 1.8 | |
| HP | A | 0.54 | |
| Circuit breakers | 230V | ||
|---|---|---|---|
| Heat Pump Only | MCA | A | 17 |
| Recommended breaker size | A | 20 | |
| MOCP | 30 | ||
| Heat Pump + 900 W Elec Heat | MCA | A | 25 |
| Recommended breaker size | A | 30 | |
| MOCP | A | 35 | |
| Heat Pump + 1,800 W Elec Heat | MCA | A | 33 |
| Recommended breaker size | A | 35 | |
| MOCP | A | 40 | |

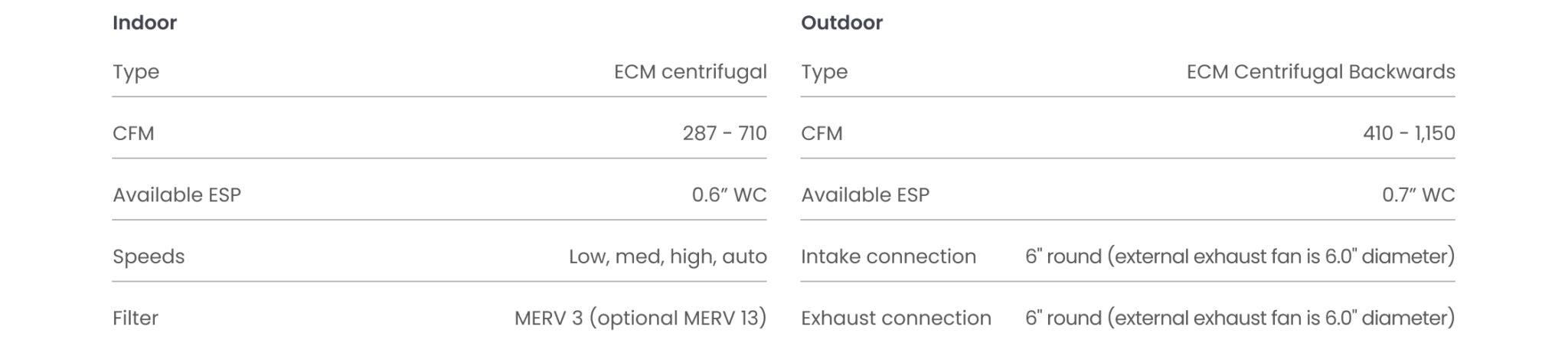

Air flow
| General | ||
|---|---|---|
| Indoor | Type | ECM Tangential |
| CFM | 287-710 | |
| Available ESP | 0.6” WC | |
| Speeds | Low, med, high, boost, auto | |
| Filter | MERV 3 (optional MERV 13) | |
| Outdoor | Type | ECM centrifugal backwards |
| CFM | 410-1,150 | |
| Available ESP | Available ESP 0.7” WC | |

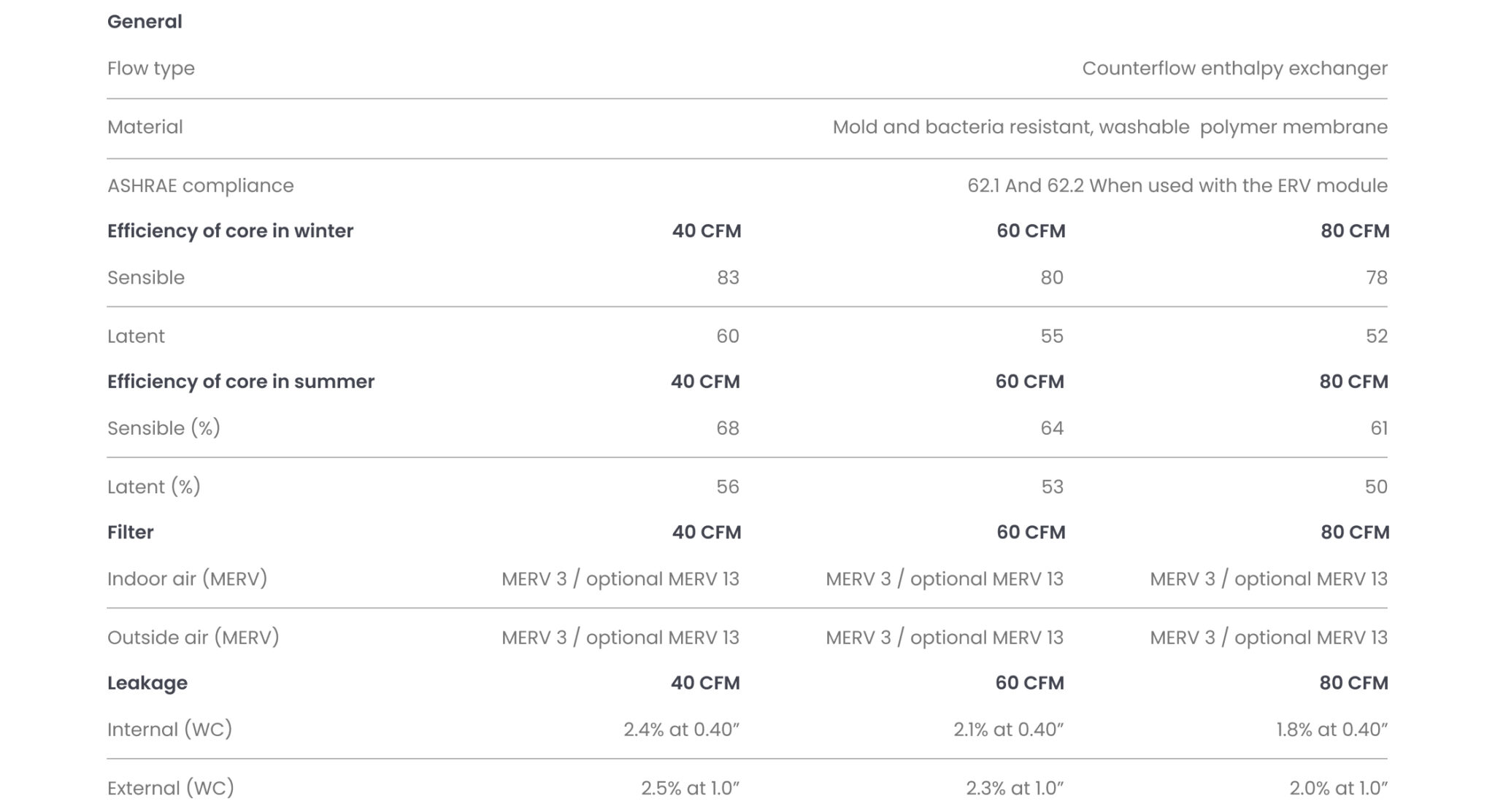

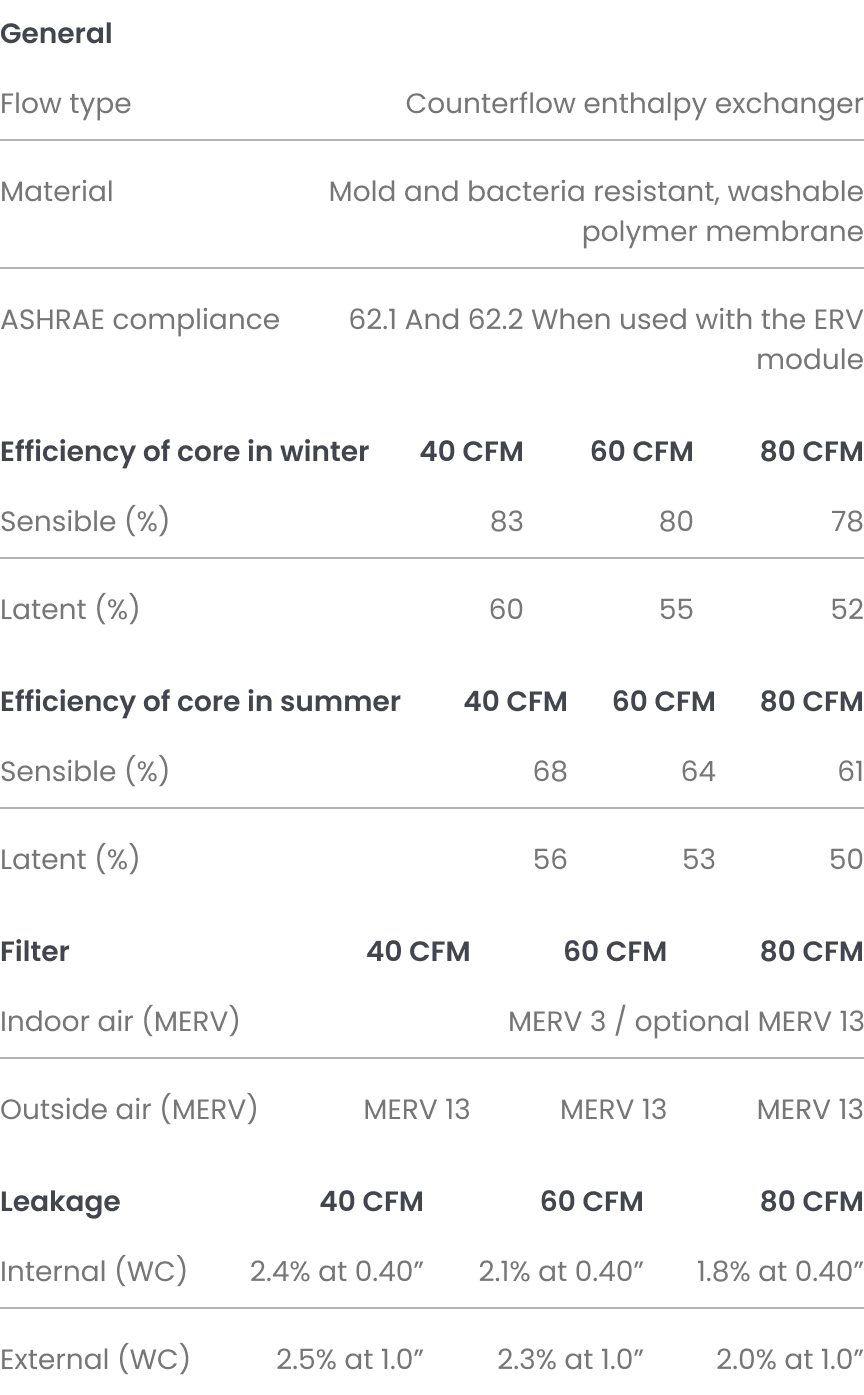

ERV
| General | |
|---|---|
| Flow type | Counterflow enthalpy exchanger |
| Material | Mold and bacteria resistant, washable polymer membrane |
| ASHRAE compliance | 62.1 and 62.2 when used with the ERV module |
| Efficiency of core in winter | |||
|---|---|---|---|
| Sensible % | 83 | 80 | 78 |
| Latent % | 56 | 53 | 50 |
| Efficiency of core in summer | |||
|---|---|---|---|
| Sensible % | 68 | 64 | 61 |
| Latent % | 56 | 53 | 50 |
| Filter | |
|---|---|
| Indoor air (MERV) | MERV 3 / optional MERV 13 |
| Outside air (MERV) | MERV 13 |
| Leakage | |||
|---|---|---|---|
| Internal | 2.4% at 0.40 | 2.1% at 0.40 | 1.8% at 0.40” |
| External | 2.5% at 1.0” | 2.3% at 1.0” | 2.0% at 1.0” |

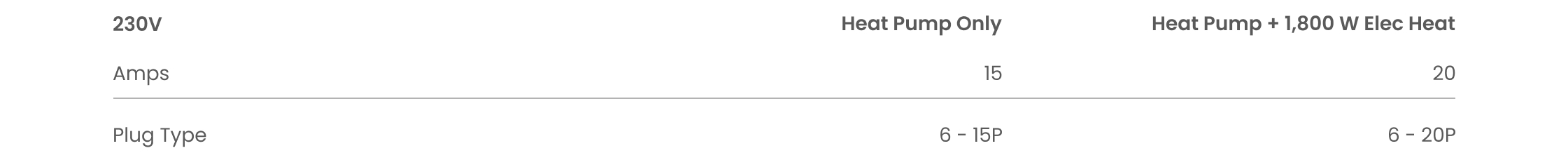

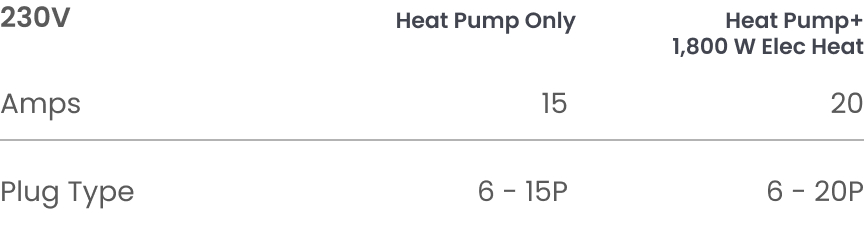

| LCDI Power Card | |||
|---|---|---|---|
| Heat Pump Only | Amps | 15 | |
| Plug Type | 6-15P | ||
| Heat Pump + 900 W Elec Heat | Amps | 15 | |
| Plug Type | 6-15P | ||
| Heat Pump + 1,800 W Elec Heat | Amps | 20 | |
| Plug Type | 6-20P | ||

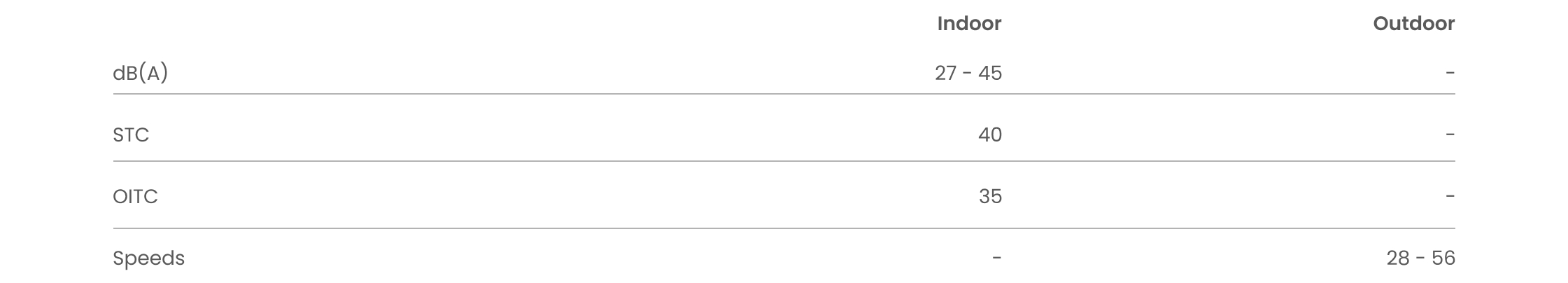

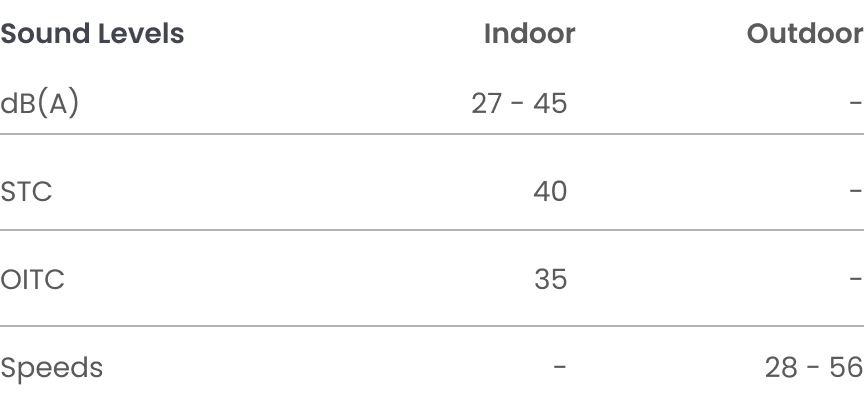

Sound
| Sound | ||
|---|---|---|
| Indoor | dB(A) | 27 - 45 |
| STC | 40 | |
| OITC | 35 | |
| Outdoor | dB(A) | 28 - 56 |

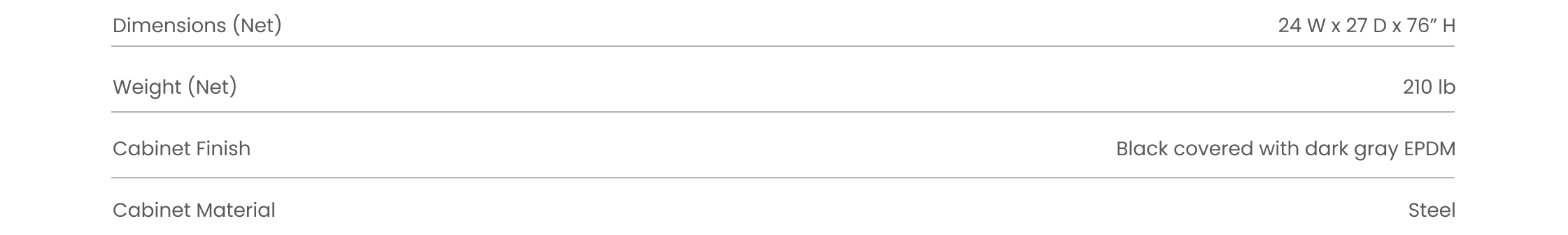

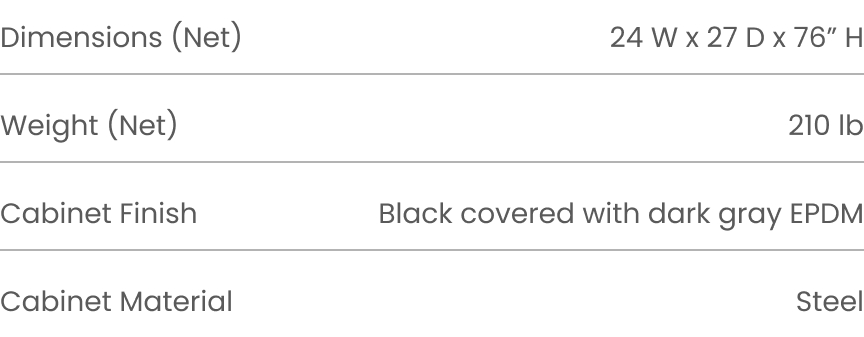

Dimensions
| Physical data | ||
|---|---|---|
| Dimensions | Net | 23.4 W x 24.2 D x71.6” H |
| Weight | Net | 210 lb |
| Gross | Black | |
| Cabinet | Finish | Steel |
| Material | Steel | |
